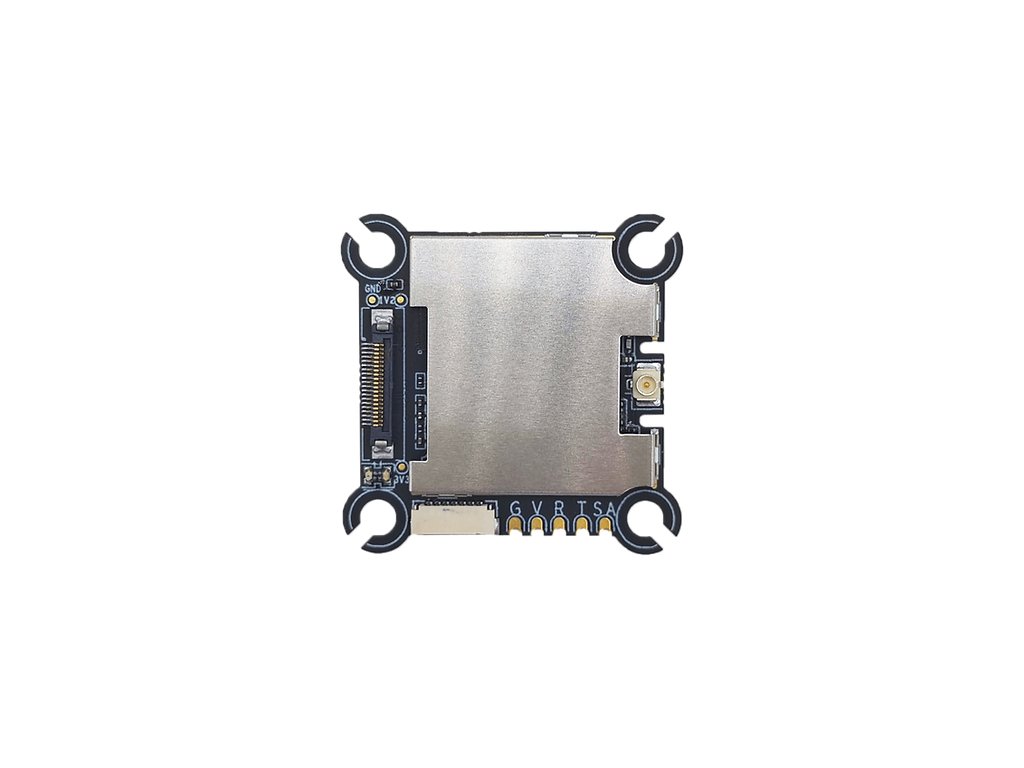

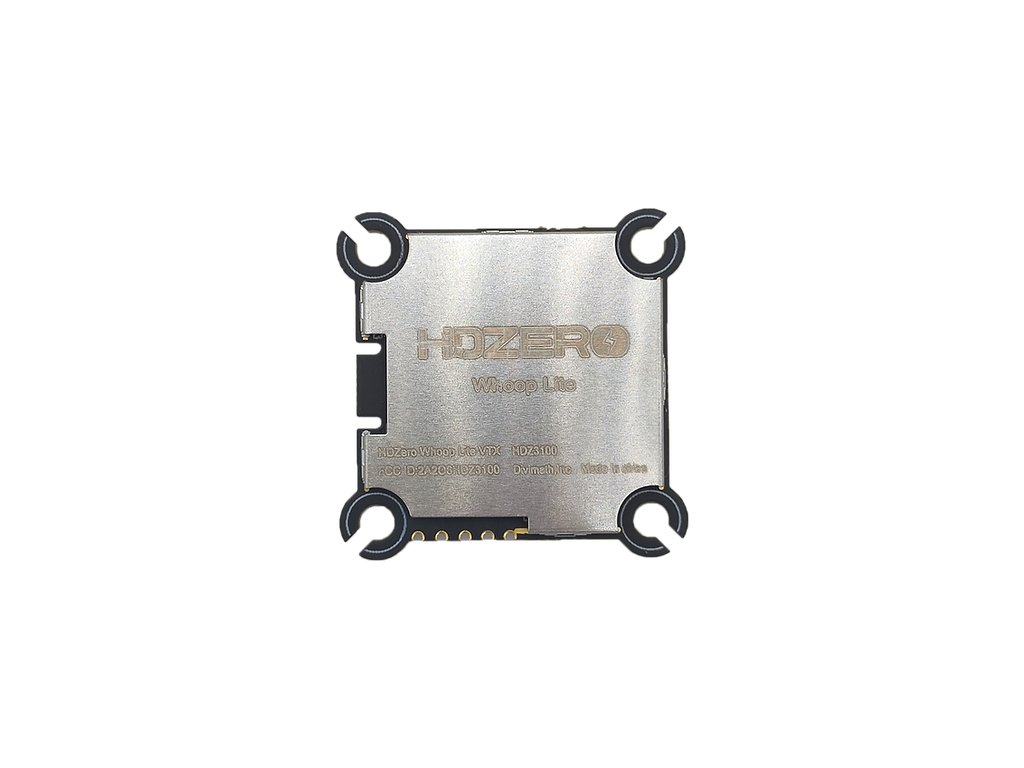

HDZero whoop Lite VTx
Popis
SPECIFIKACE
|
Model: |
HDZero Whoop Lite VTX |
|
SKU: |
HDZ3100 |
|
Frequency: |
5.8G |
|
Resolution Default: |
1280*720@60fps |
|
RF power: |
25mw/200mw |
|
RF Connector: |
U.FL |
|
Interface: |
4 lane MIPI CSI YUV422 |
|
Video Connector: |
20 Position 0.30mm Pitch |
|
Size: |
32.4x32.5mm (29x29mm inner) |
|
Weight: |
4.5grames/4mm Thickness (w/o shielding) |
|
Power: |
1000mA@5V |
|
power input |
1S-3S |
|
Mounting: |
25.5x25.2 M2 soft mounting |
OBSAH BALENÍ
HDZero Whoop Lite VTX * 1;
Power/Uart Cable * 5；
Zip ties * 2；
Rubber Grommet (M3 to M2) * 4;
