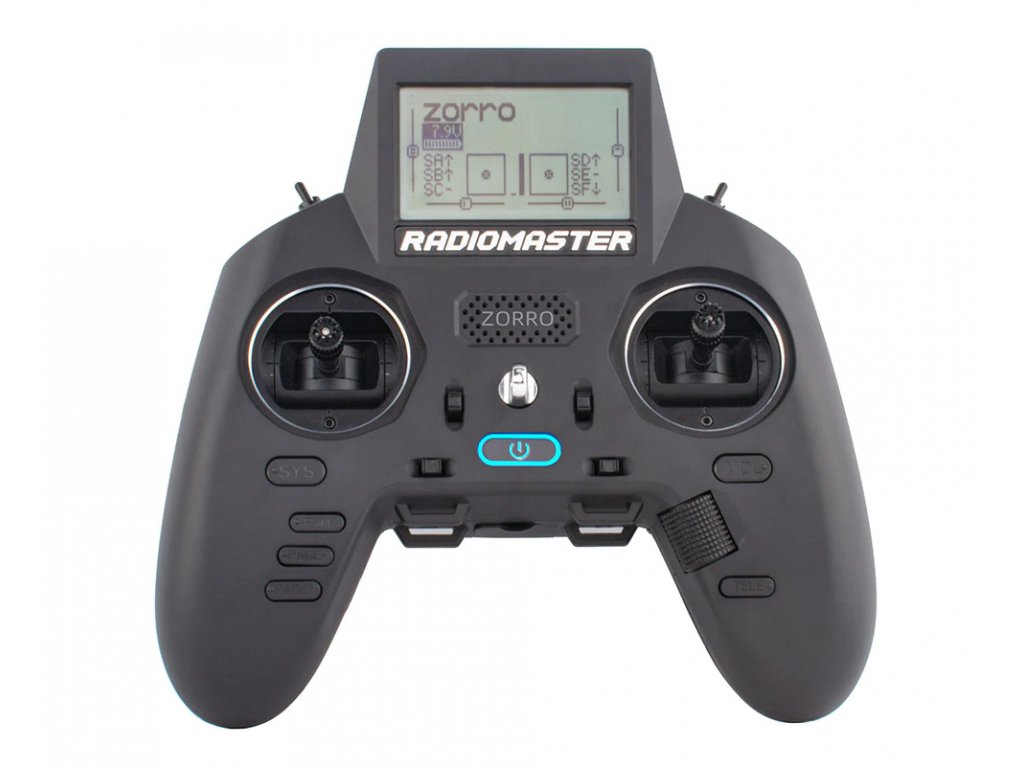

Radiomaster Zorro


Novinka Efekt lupa
  • 1 z 2


Novinka firmy Radiomaster - Zorro v provedení ELRS nebo multiprotokol. Pokročilé rádio gamepadového typu pro ovládání jakéhokoliv modelu se správným přijímačem.

Dostupnost Zvolte variantu Vyprodáno Skladem
Varianta
3 790 Kč 3 590 Kč od 3 590 Kč
Kategorie Rádia


Ergonomický design, velký displej, Halové gimbaly, šachta pro externí nano modul, nabíjení přes USB-C, to vše je splňuje nové rádio z dílny Radiomaster - Zorro.

Zorro radio controller

Specifikace

Verze

Multiprotokol

4in1

ELRS

ELRS Starter Set

CC2500 + TBS Nano Crossfire Combo

Physical Dimensions

170*159*108mm

Weight

350 grams

Operating Frequency

2.400GHz-2.480GHz

Internal RF Options

CC2500 multi-protocol

4-in-1 multi-protocol

ELRS

CC2500 multi-protocol

Supported Protocols

Module dependent

Module dependent

ELRS

Module dependent

RF Power

CC2500: 20dBm max.

4-in-1: 20dBm max.

Up to 250mw ( CE & FCC Versions will be available)

CC2500: 20dBm max.

Antenna Gain

Folding 2db

Operational Current

160mA@8.4V

Operational Voltage

6.6-8.4v DC

Control Distance

> 2km @ 20dbm

> 2km @ 20dbm

Receiver and Power Output dependant

> 2km @ 20dbm

Operating system

OpenTX / EdgeTX Compatible

Control channels

Maximum 16 (Rx dependent)

Display

128*64 Monochrome LCD

Battery

2 x 18350 (Not included)

Charging

Built in USB-C Charging

Gimbal

Hall-effect

Module Bay

Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)

Firmware Upgrade Method

Via USB or SD card

Support OPENTX & EDGETX

radiomaster zorro radio OPENTX EDGETX

Support 4 RF Configurations

radiomaster zorro radio controller

Switchable in Mode 1 and Mode 2

Zorro radio supports switching between Mode 1 and Mode 2 without disassembly. The default factory mode is Mode 2.

RadioMaster Zorro Radio

Adjustable Hall Gimbals

radiomaster hall gimbals

External Module Bay

Zorro Radio is with an external module bay for use with Crossfire / ELRS and other compatible modules.

RadioMaster Zorro Radio

18350 Battery Compartments

Battery Charging

  • Supports USB-C Directing Charging

  • Supports External 2S Battery Power Supply

Oversized LCD & Foldable Antenna

RadioMaster Zorro Radio oversized LCD

 DIY Attachment Points

RadioMaster Zorro Radio DIY Attachment Points

Ergonomically Designed
