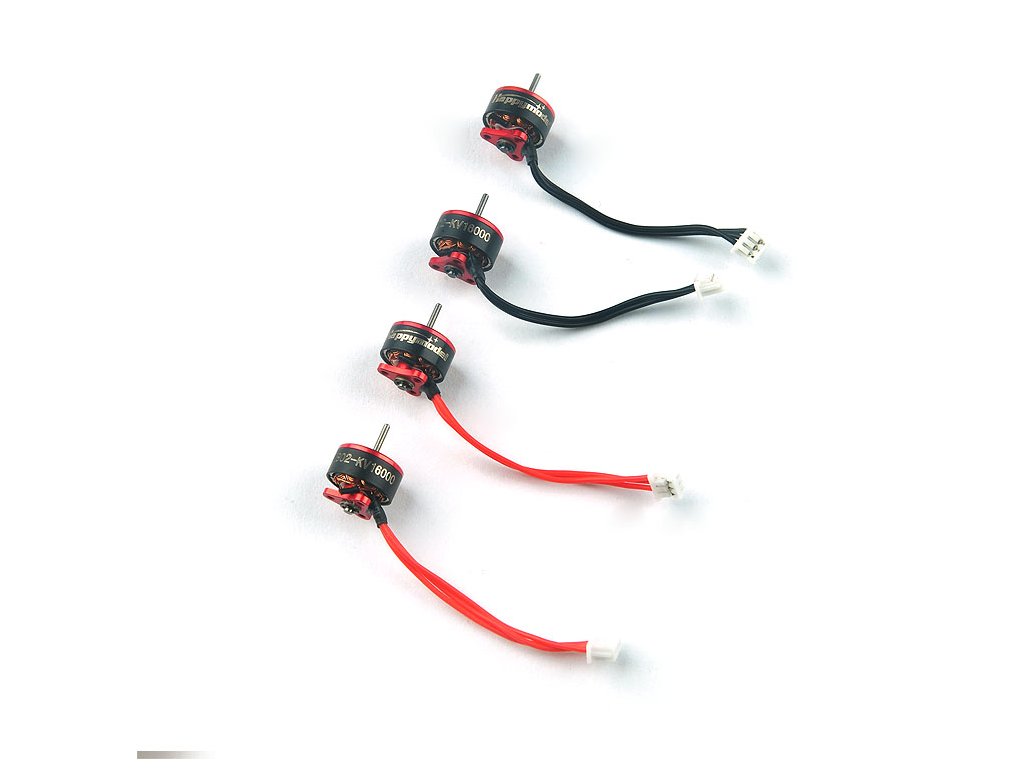

HappyModel SE0802 19k/25k
Popis
| Model | No-load test | Propellers | Voltage (v) | Current (A) | thrust (g) | Power (W) | Efficiency（g/W) | |
| SE0802 KV19000 |
0.24A 28620RPM 1.5V 19080KV | 55mm 2-blades Propeller |
3.80 | 1.05 | 11.90 | 3.990 | 2.982 | |
| 3.80 | 2.08 | 20.50 | 7.904 | 2.594 | ||||
| 3.80 | 3.05 | 27.10 | 11.590 | 2.338 | ||||
| 3.80 | 4.11 | 32.30 | 15.618 | 2.068 | ||||
| 3.70 | 4.25 | 33.90 | 15.725 | 2.156 | ||||
| 0.3A 26460RPM 1.5V 18430KV | 31mm 4-blades propeller |
4.20 | 1.18 | 11.40 | 4.956 | 2.300 | ||
| 4.20 | 1.97 | 16.70 | 8.274 | 2.018 | ||||
| 4.20 | 3.15 | 23.90 | 13.230 | 1.807 | ||||
| 4.20 | 3.42 | 24.60 | 14.364 | 1.713 | ||||
| SE0802 KV25000 |
0.45A 50840RPM 2v 25420KV |
Gemfan 1219-3 30mm 3-blades |
3.70 | 1.02 | 7.10 | 3.774 | 1.881 | |
| 3.70 | 1.95 | 13.50 | 7.215 | 1.871 | ||||
| 3.70 | 2.92 | 19.40 | 10.804 | 1.796 | ||||
| 3.70 | 4.05 | 25.60 | 14.985 | 1.708 | ||||
| 3.70 | 4.34 | 26.70 | 16.058 | 1.663 | ||||
| 0.45A 50840RPM 2v 25420KV |
40mm 4-blades propeller |
2.60 | 1.02 | 7.60 | 2.652 | 2.866 | ||
| 2.60 | 1.99 | 13.20 | 5.174 | 2.551 | ||||
| 2.60 | 2.99 | 18.90 | 7.774 | 2.431 | ||||
| 2.60 | 3.98 | 23.40 | 10.348 | 2.261 | ||||
| 2.60 | 4.53 | 25.20 | 11.778 | 2.140 | ||||
SPECIFIKACE:
KV: 19000KV, 25000KV
Shaft Diameter: 1.0mm
Configuration: 9N12P
Stator Diameter: 8mm
Stator Length: 2mm
Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm
Terminals: JST1.25mm
No.of Cells(Lipo): 1s
Délka kabelu: 30mm
Váha: 1.9g
