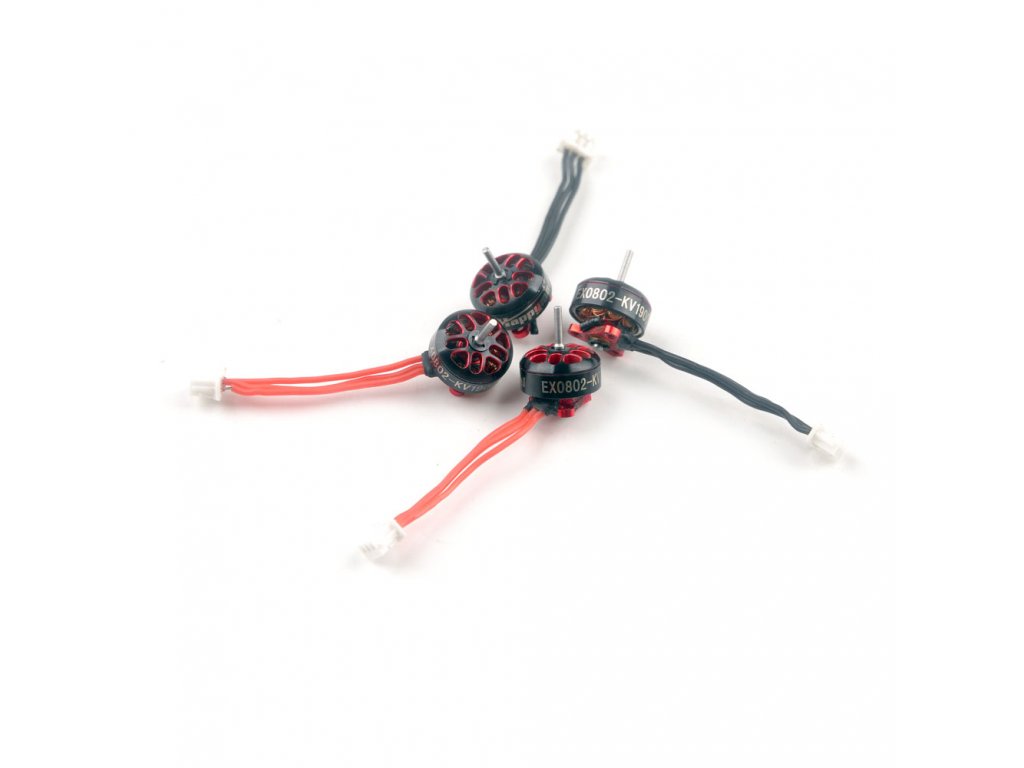

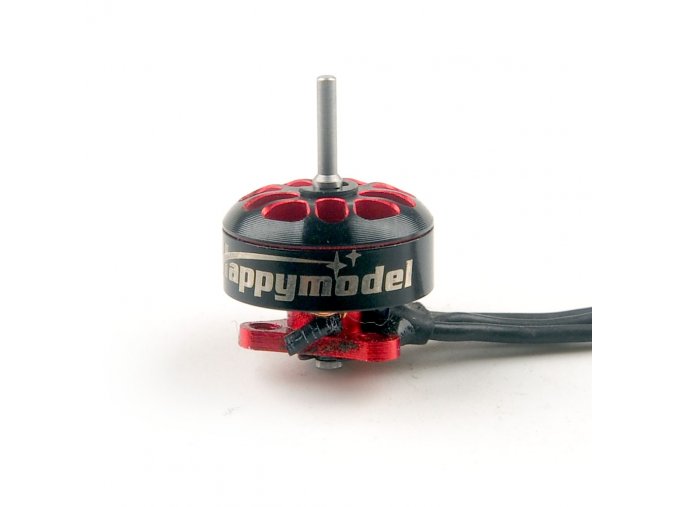

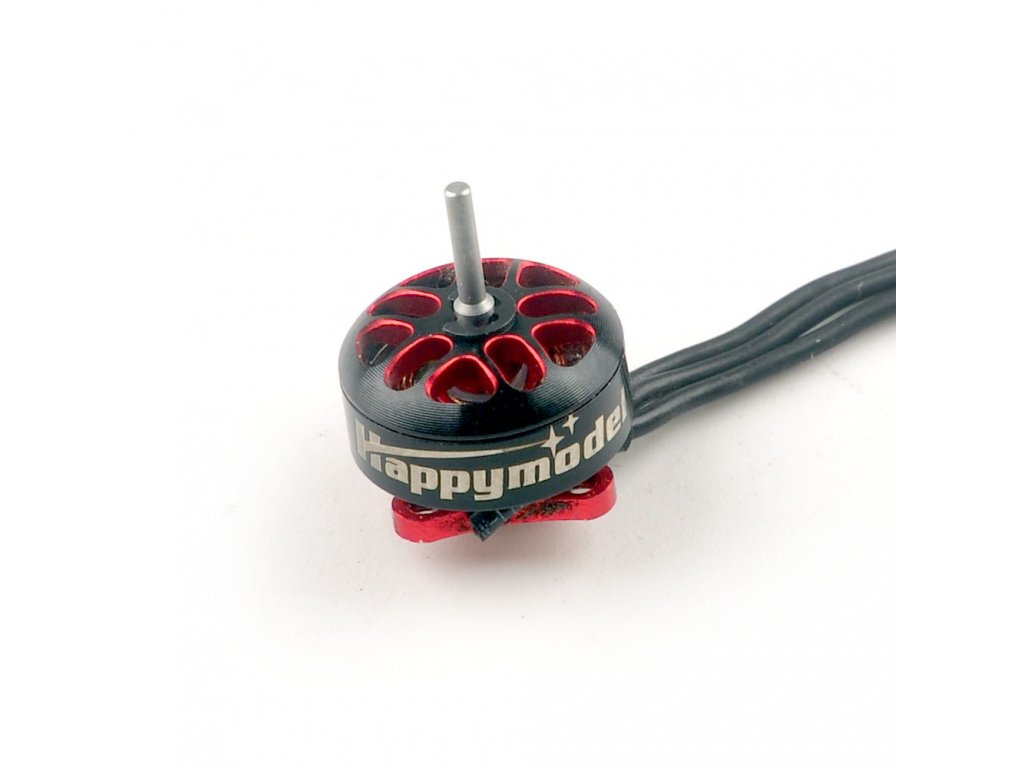

HappyModel EX0802 19k/25k
Popis
SPECIFIKACE:
Brand name: Happymodel
Item name: EX0802 brushless motor
KV: 19000kv/25000KV
Shaft Diameter: 1.0mm
Configuration: 9N12P
Stator Diameter: 8mm
Stator Length: 2mm
Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm
Terminals: JST1.25mm
Délka kabelů: 27mm

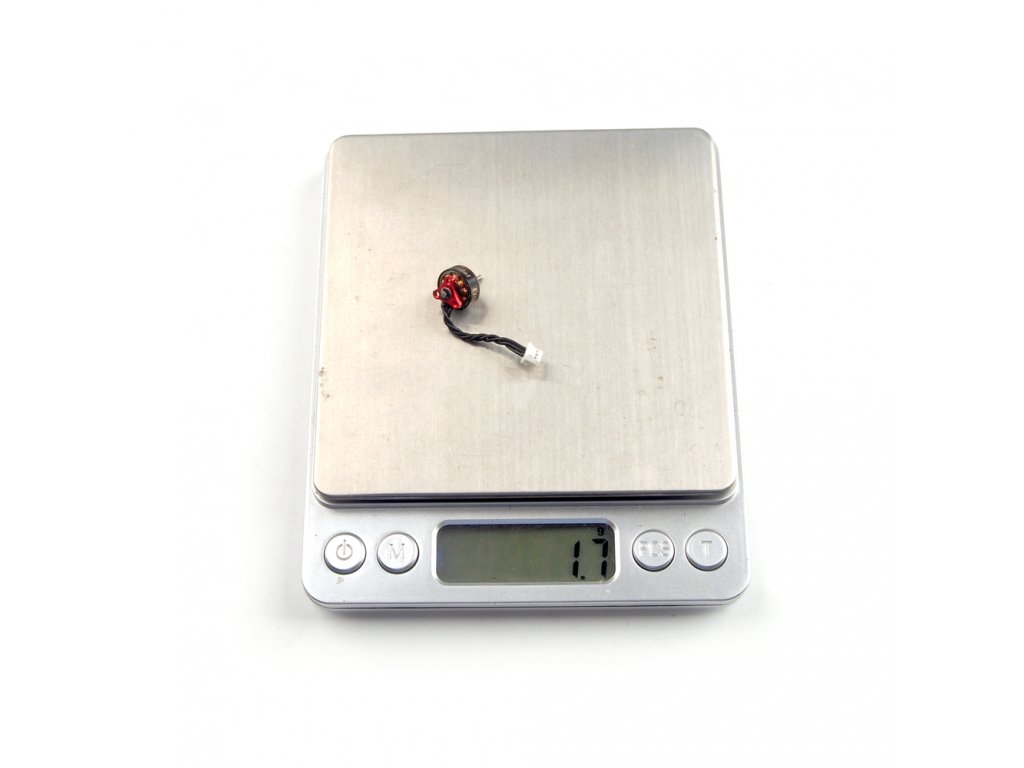

Váha: 1.7g
| Happymodel EX0802 Brushless motors benchmark | ||||||||
| Model | No-load test | Propellers | Voltage (v) | Current (A) | thrust (g) | Power (w) | Efficiency（g/w) | |
| EX0802 KV25000 One-Piece Design |
0.45A 50840RPM @2V 25420KV |
Gemfan 1219 propeller 31mm | 3.7 | 1.03 | 8.4 | 3.811 | 2.204145893 | |
| 3.7 | 1.86 | 14 | 6.882 | 2.034292357 | ||||
| 3.7 | 3.05 | 21.4 | 11.285 | 1.896322552 | ||||
| 3.7 | 3.97 | 26.6 | 14.689 | 1.810878889 | ||||
| 3.7 | 4.41 | 27.8 | 16.317 | 1.703744561 | ||||
| Happymodel 40mm 4-blade propeller |
2.6 | 1.02 | 7.6 | 2.652 | 2.865761689 | |||
| 2.6 | 1.99 | 13.2 | 5.174 | 2.551217627 | ||||
| 2.6 | 2.99 | 18.9 | 7.774 | 2.431180859 | ||||
| 2.6 | 3.98 | 23.4 | 10.348 | 2.261306533 | ||||
| 2.6 | 4.53 | 25.2 | 11.778 | 2.139582272 | ||||
| EX0802 KV19000 One-Piece Design |
0.45A 38320RPM @2V 19160KV |
Gemfan 1219 propeller 31mm | 3.7 | 0.97 | 8.8 | 3.589 | 2.451936473 | |
| 3.7 | 2.01 | 17.3 | 7.437 | 2.326206804 | ||||
| 3.7 | 2.62 | 21.5 | 9.694 | 2.217866722 | ||||
| Happymodel 40mm 4-blade propeller |
3.7 | 0.98 | 9.8 | 3.626 | 2.702702703 | |||
| 3.7 | 2.06 | 18.4 | 7.622 | 2.41406455 | ||||
| 3.7 | 2.96 | 23.4 | 10.952 | 2.136596056 | ||||
| 3.7 | 4.09 | 29.3 | 15.133 | 1.936165995 | ||||
