GTS V3 1002 14/22k KV


  • 1 z 3

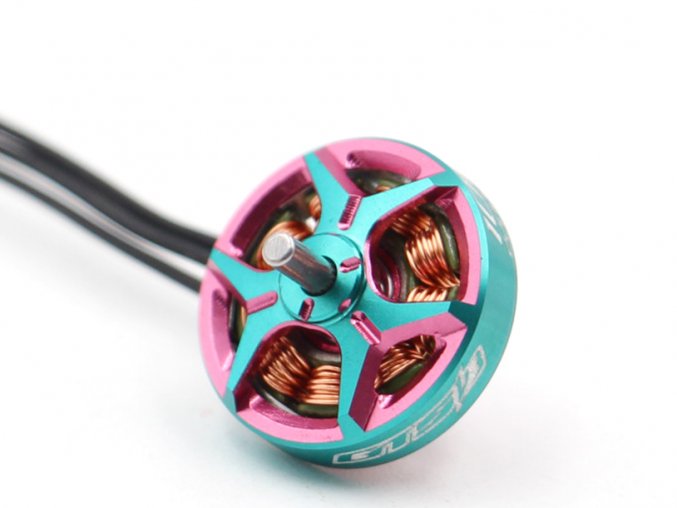

Motor RCinPower GTS V3 1002 ve verzi 14k a 22k KV v tyrkysové barvě pro stavbu menších koptér

Dostupnost Zvolte variantu Skladem Vyprodáno
Varianta
279 Kč
Kategorie pod 2205


Specifikace

14000KV

  • Motor Dimensions: 13.5x7.75mm
  • Max Continuous Current: 9A
  • Stator Dimensions: 10x2mm
  • Internal Resistance: 175mΩ
  • Mounting Pattern: 9x9mm
  • Shaft Diameter: 1.5mm
  • ldle Current@5V: .8A
  • Configuration: 9N12P
  • Input Voltage: 1-2S
  • Weight: 2.5g
  • Kv: 14000


22000KV

  • Efficiency Current: 2-4A ( More than 84%)
  • Max. Current: 14A (3S) Max.
  • Max. Con. Power: 52W (3S)
  • Internal Resistance: 75mΩ
  • Idle Current: 1.5A @ 5V
  • Stator Diameter: 10mm
  • Shaft Diameter: 1.5mm
  • Input Voltage: 1S Lipo
  • Configuration: 9N12P
  • KV: 22000KV
  • Weight: 2.5g



obsah balení

  • 1x RCINPOWER GTS V3 1002 Motor (Choose 14000KV, 19000KV, or 22000KV)
  • 1x Hardware Set
