TBS M10Q GPS


  • 1 z 3

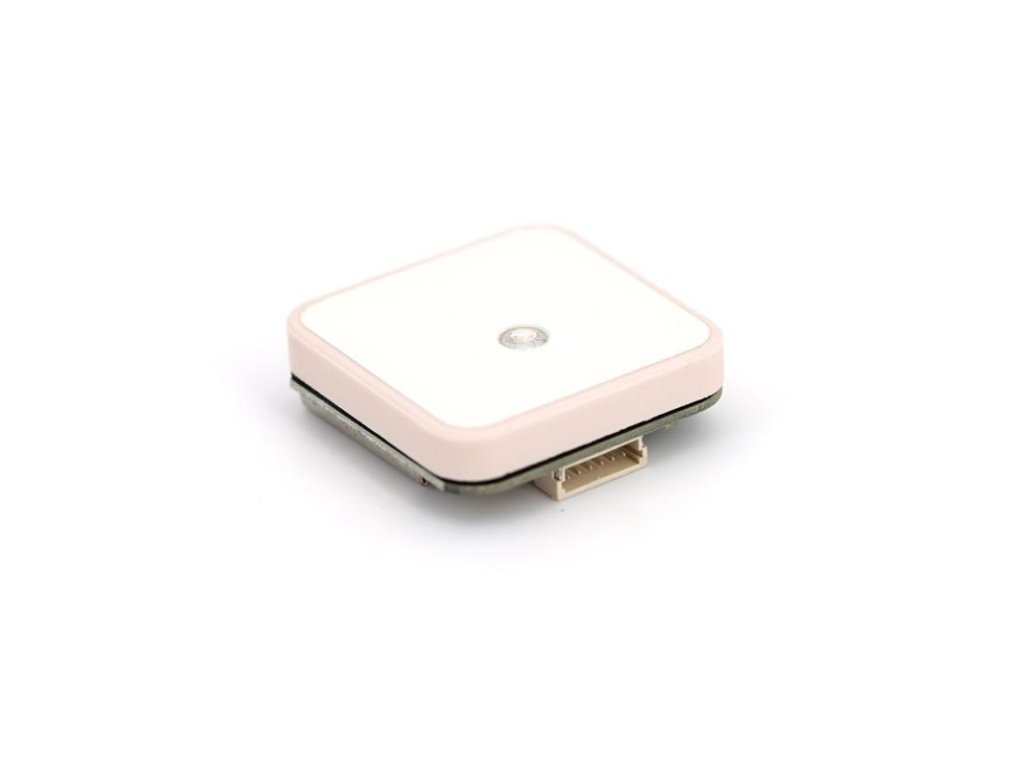

GPS modul TBS M10Q

Dostupnost Skladem
589 Kč
Kategorie Ostatní


Specifikace

  • Chipset - ublox UBX-M10050
  • Flash memory for saving configuration.
  • Frequency - L1, 1575.42MHz ; L2,1561.10MHZ;L3,1602.00MHZ
  • Baud Rate - 4800bps-921600bps, default 115200bps
  • Channel - N/a
  • Sensitivity - (Tracking: -166dBm) | (Capture: -160dBm) | (Cold Start - 148dBm)
  • Cold start - Average 26 seconds
  • Warm start - Average 24 seconds
  • Hot start - Average 1 second
  • Accuracy - (HorizontalPosition:Autonomous<2m average) | (SBAS < 2.0m average) | (Timepulse signal: RMS 30 ns)
  • Maximum height - 50000m
  • Maximum speed - 500 m/s
  • Maximum acceleration - ≦ 4G
  • Refresh Rate - 0.25Hz-18Hz, default 1Hz
  • Size - 25 x 25 x 7.7mm
  • Weight - 13.5g
  • Input Voltage - 5V
  • Magnetometer: QMC5883
