Goku GM10 Nano V3 GPS
Popis
Popis

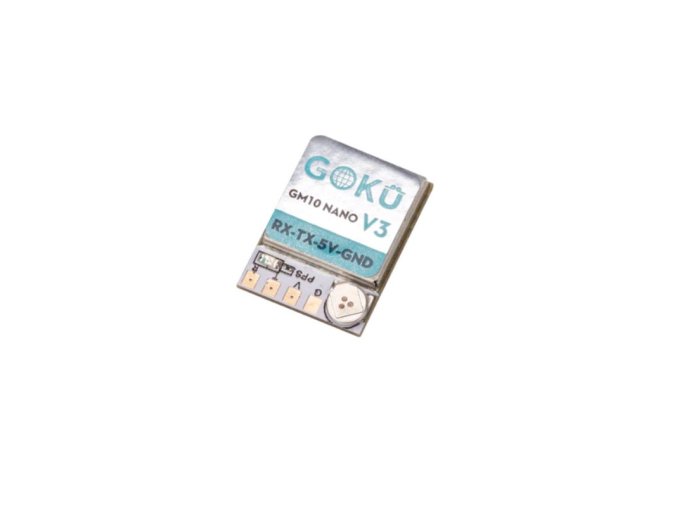

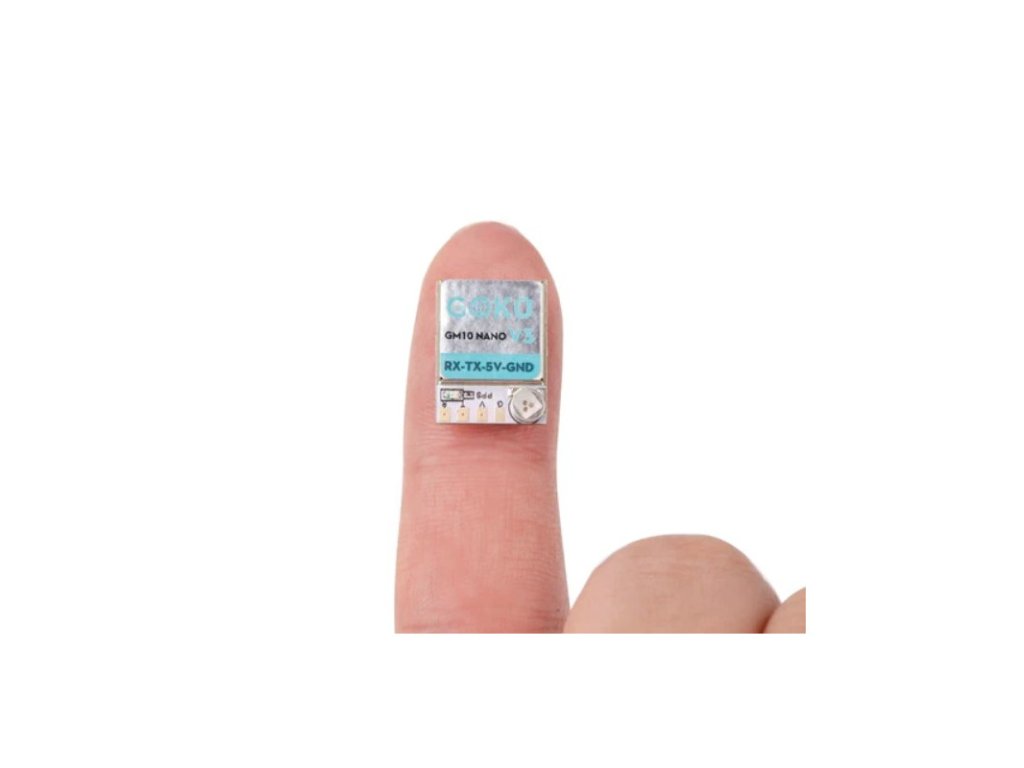

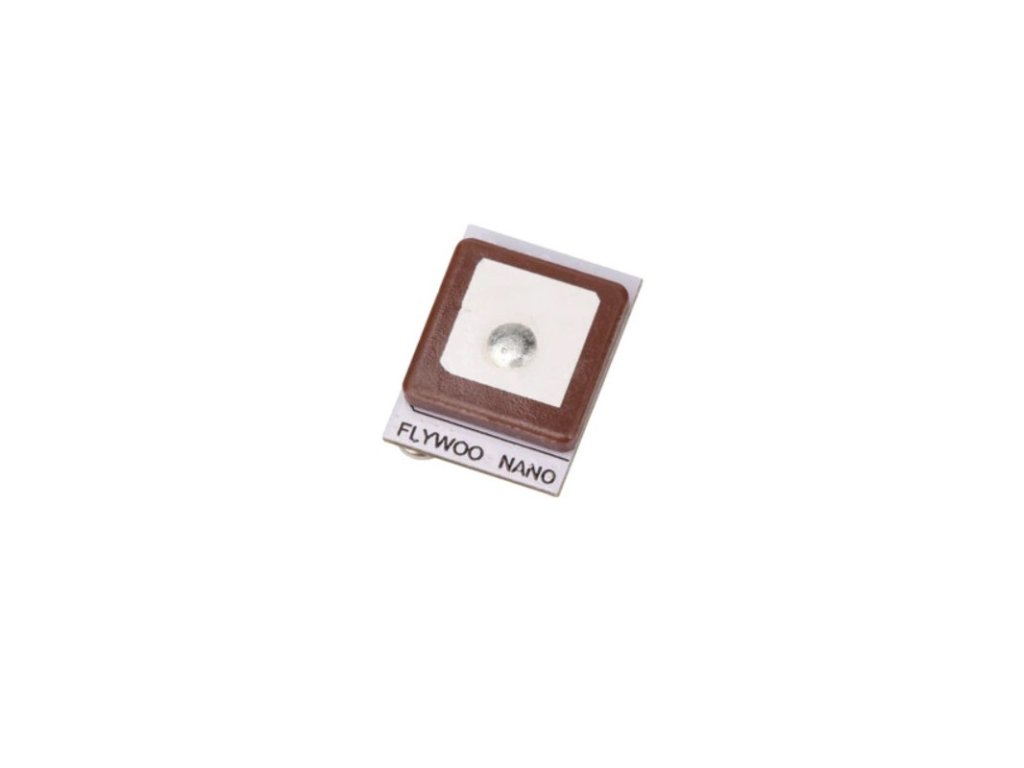

Model: GM10 NANO V3 GPS

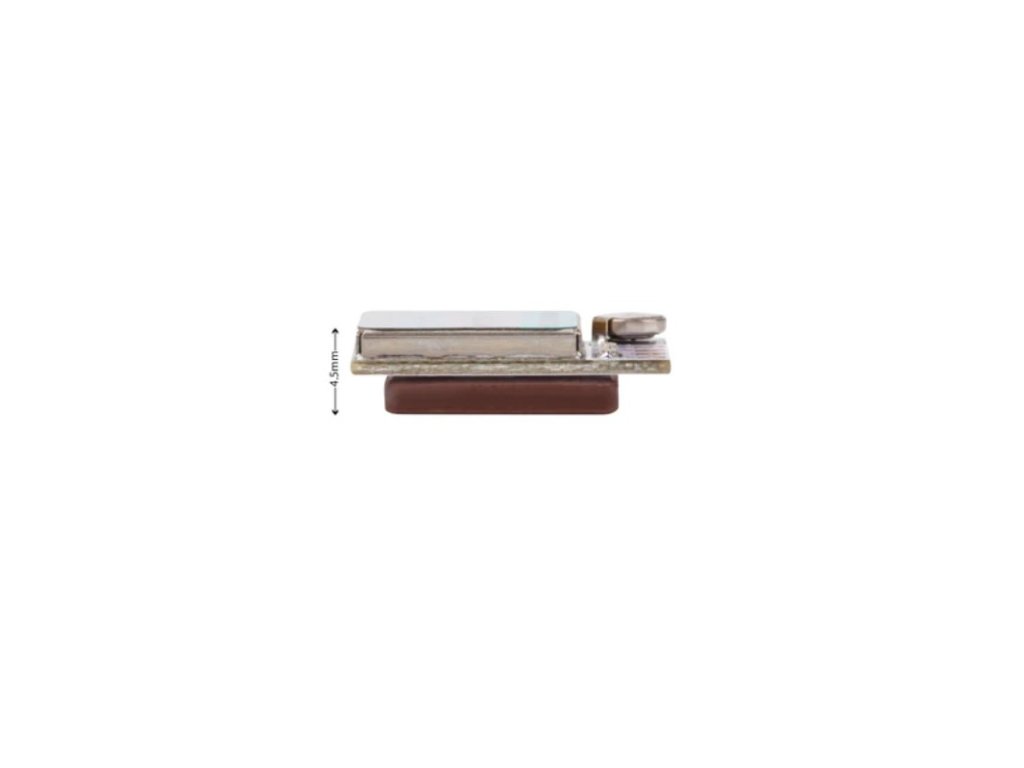

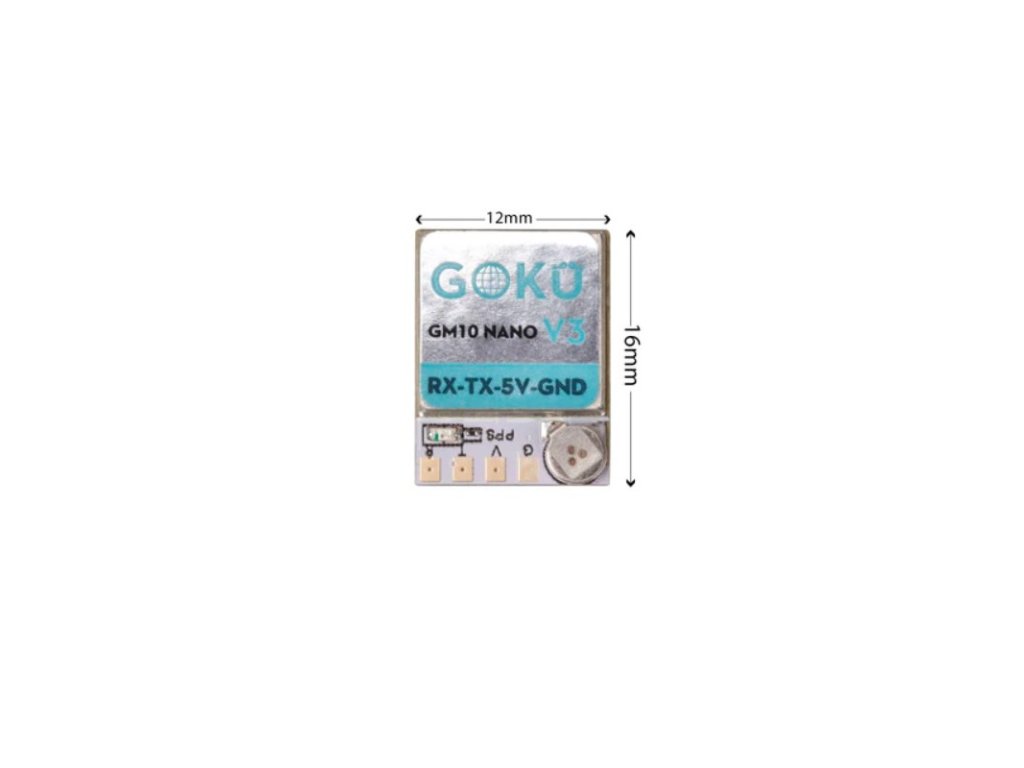

Rozměry :12mm*16mm*4.5mm

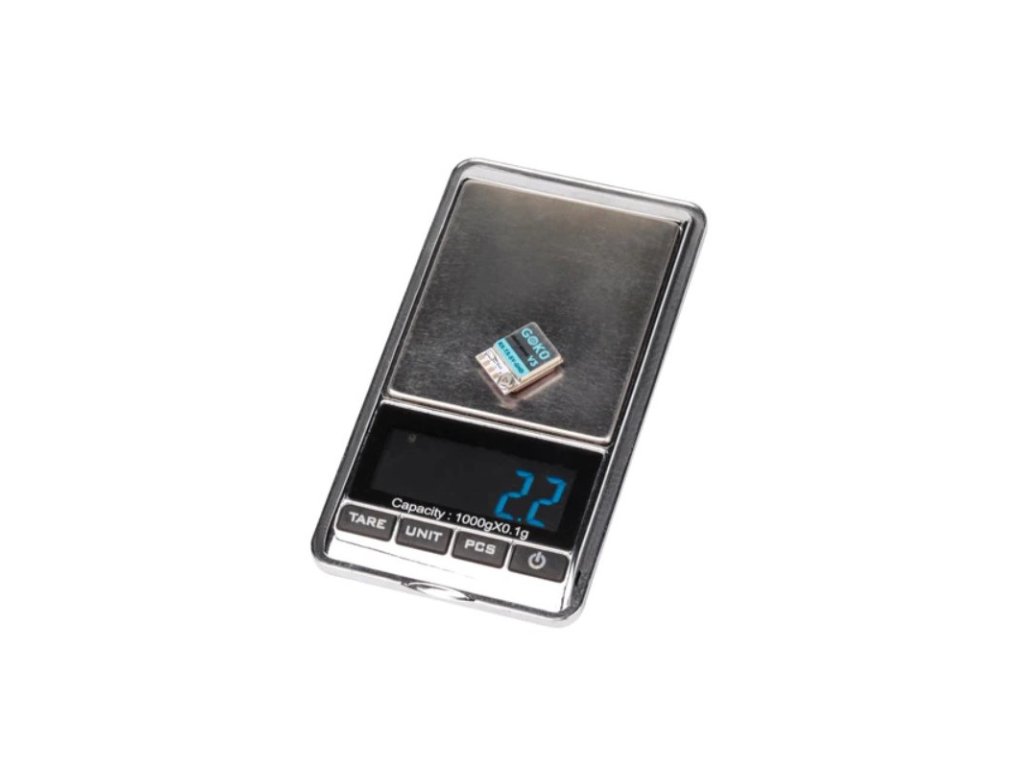

Váha: 2.2g
Konektor: 4pins Pad
Features:
GPS Module,Three Module
4pins Pad，ultra light weight
Specifikace
Chipset : M10050(Tenth Generation Chip)
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Default Protocol : GPS,Galileo,BeiDou
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel
Sensitivity
Tracking : -162dBm
Reacquisition : -160dBm
Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 115200bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
Output frequency : 1Hz-10Hz，Default 10Hz
Operational Limits
Altitude : 50,000m Max
Velocity : 500m/s Max
Acceleration : Less than 4g
Power consumption
VCC : DC Voltage ：3.3-5V
Operating temp : -40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C
Obsah balení
1x GM10 NANO V3 GPS
1x 100mm kabel
1x Měděná Fólie
Model: GM10 NANO V3 GPS
Rozměry :12mm*16mm*4.5mm
Váha: 2.2g
Konektor: 4pins Pad
Features:
GPS Module,Three Module
4pins Pad，ultra light weight
Specifikace
Chipset : M10050(Tenth Generation Chip)
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Default Protocol : GPS,Galileo,BeiDou
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel
Sensitivity
Tracking : -162dBm
Reacquisition : -160dBm
Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 115200bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
Output frequency : 1Hz-10Hz，Default 10Hz
Operational Limits
Altitude : 50,000m Max
Velocity : 500m/s Max
Acceleration : Less than 4g
Power consumption
VCC : DC Voltage ：3.3-5V
Operating temp : -40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C
Obsah balení
1x GM10 NANO V3 GPS
1x 100mm kabel
1x Měděná Fólie
Schéma zapojení:
Čip GM10 V3 GPS je M1005 - Ublox protokol je možný v betaflightu až od verze 4.3, nižší verze BF mohou používat pouze NMEA protokol.
