Goku GM10 Mini V3 GPS
Popis
SPECIFIkace

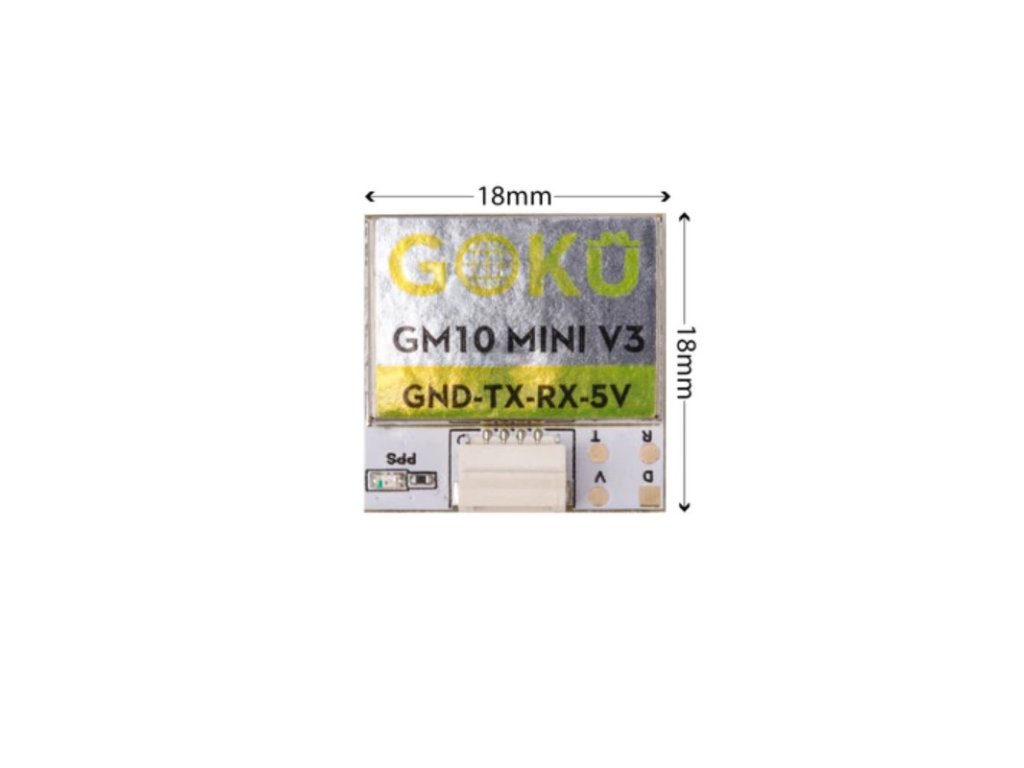

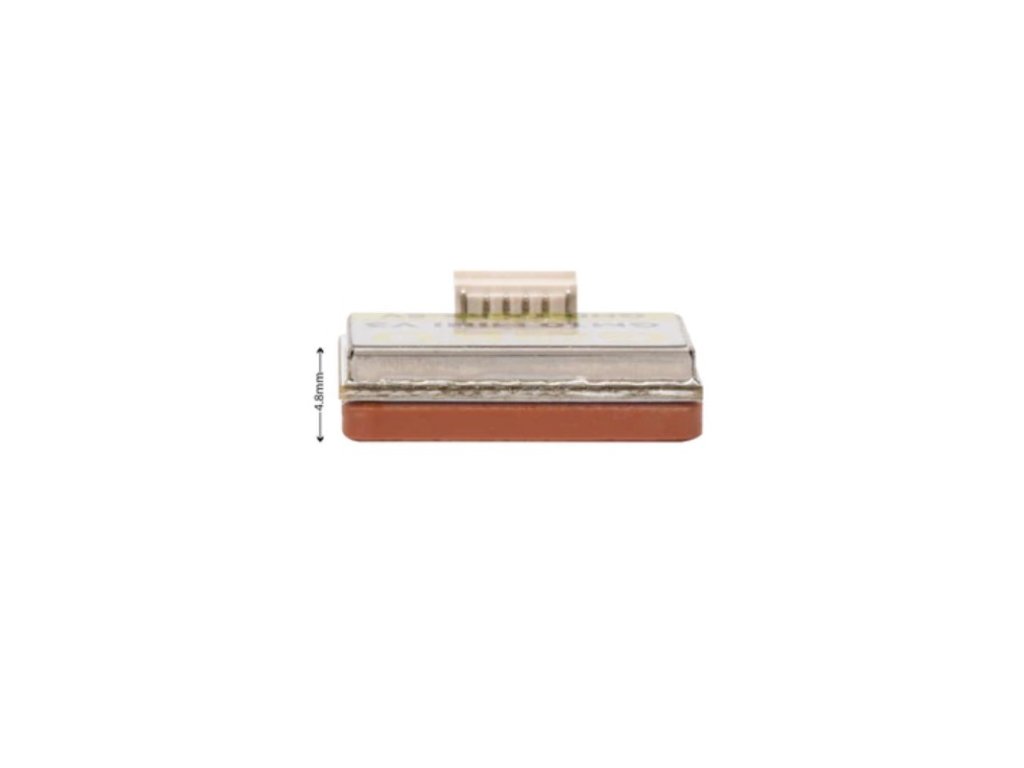

- Rozměry: 18*18*4.8mm
- Váha: 4.7g

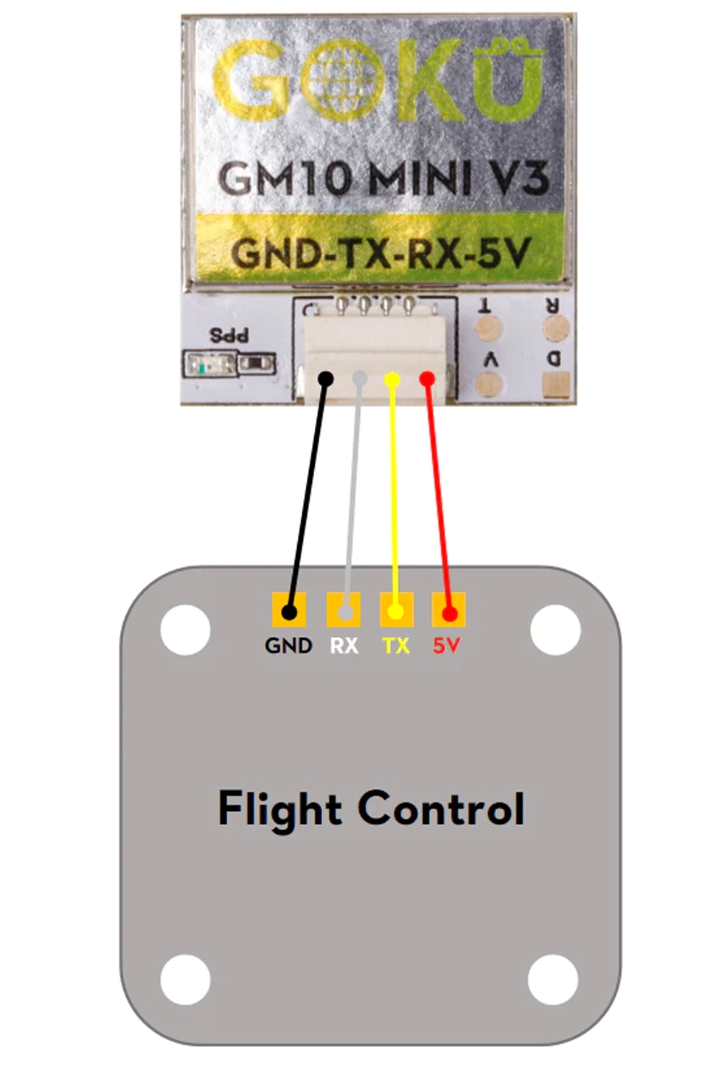

- Konektor : 1.00mm spacing between the 4pins patch seat
- Chipset : M10050(Tenth Generation Chip)
- Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
- Default Protocol : GPS,Galileo,BeiDou
- Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
- Channels : 72 Searching Channel
- Tracking : -162dBm
- Reacquisition : -160dBm
- Support Rate : 4800bps to 921600bps,Default 115200bps
- Data Level : TTL or RS-232,Default TTL level
- Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
- Output frequency : 1Hz-10Hz，Default 10Hz
- Altitude : 50,000m Max
- Velocity : 500m/s Max
- Acceleration : Less than 4g
- VCC : DC Voltage ：5V
- Operating temp : -40 °C ~ +85°C
- Storage Temp : -40°C ~ +105°C

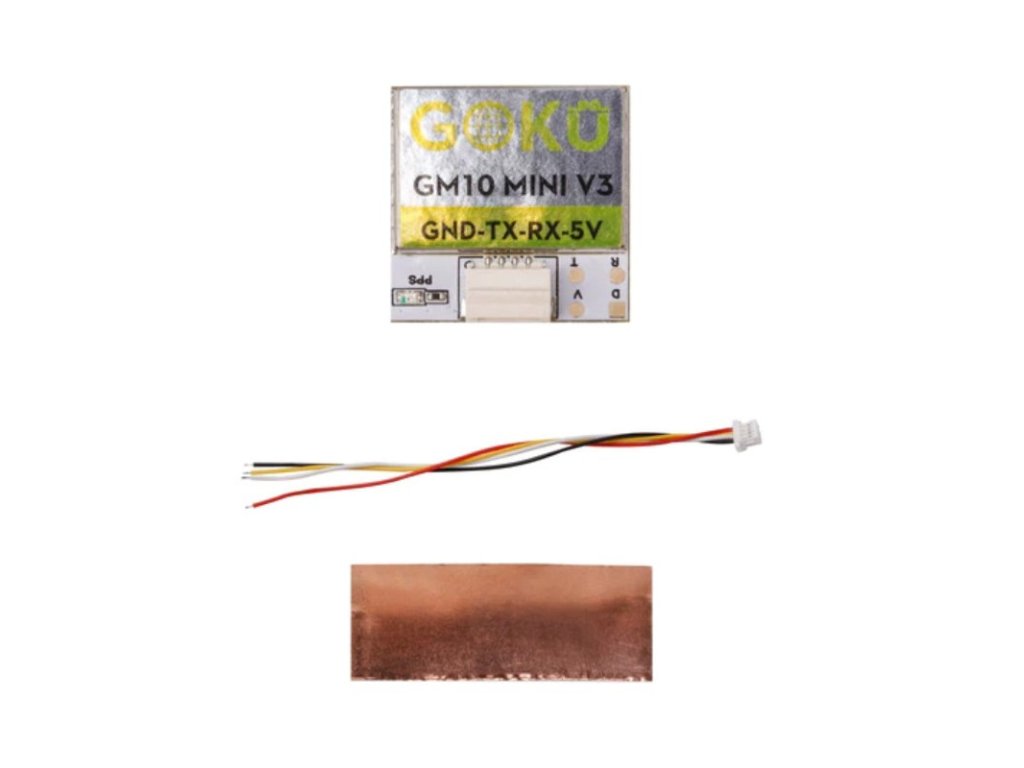

obsah balení
- 1x GM10 PRO V3 GPS w/ compass
- 1x 150mm cable
- 1x Copper foil
