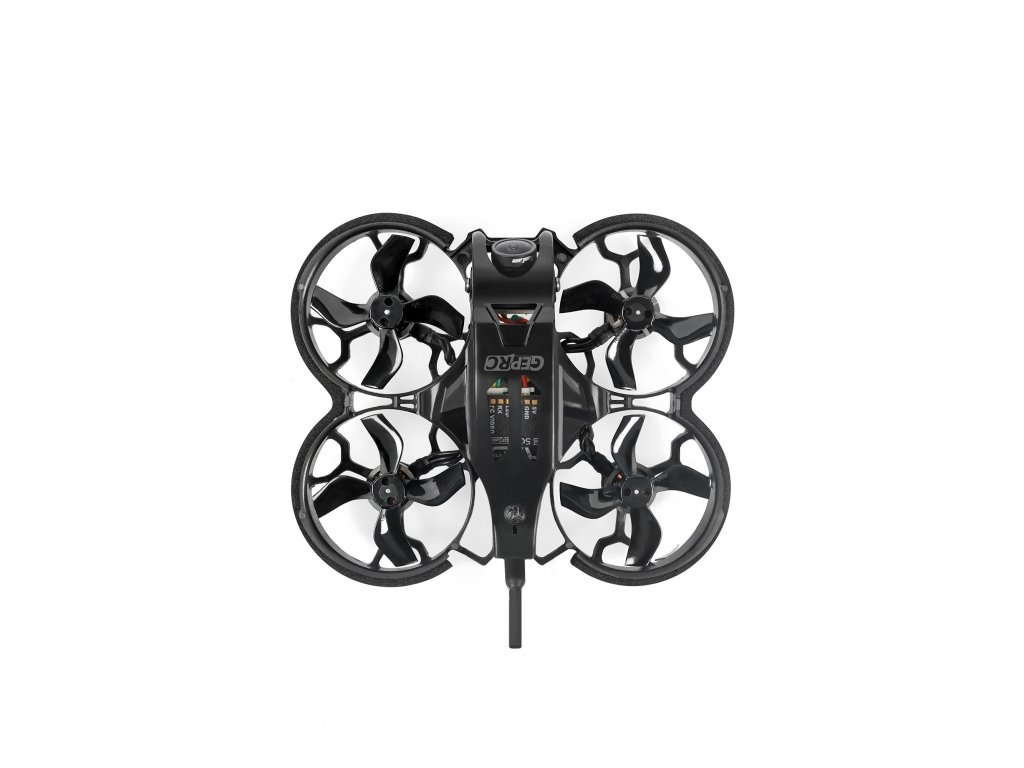

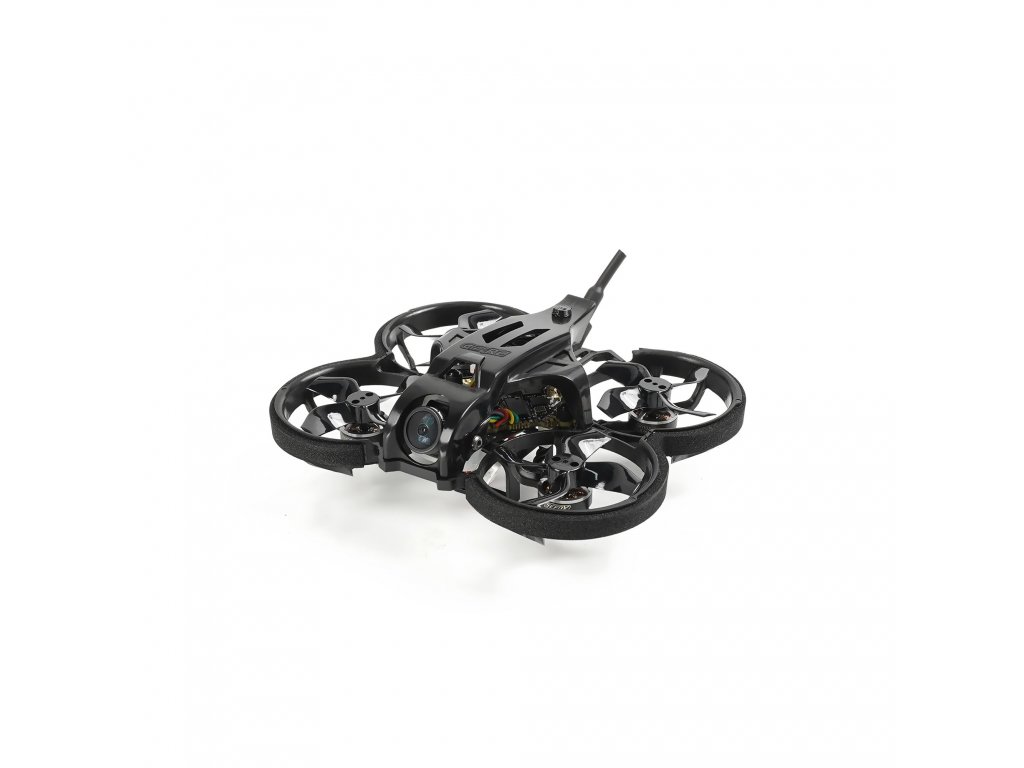

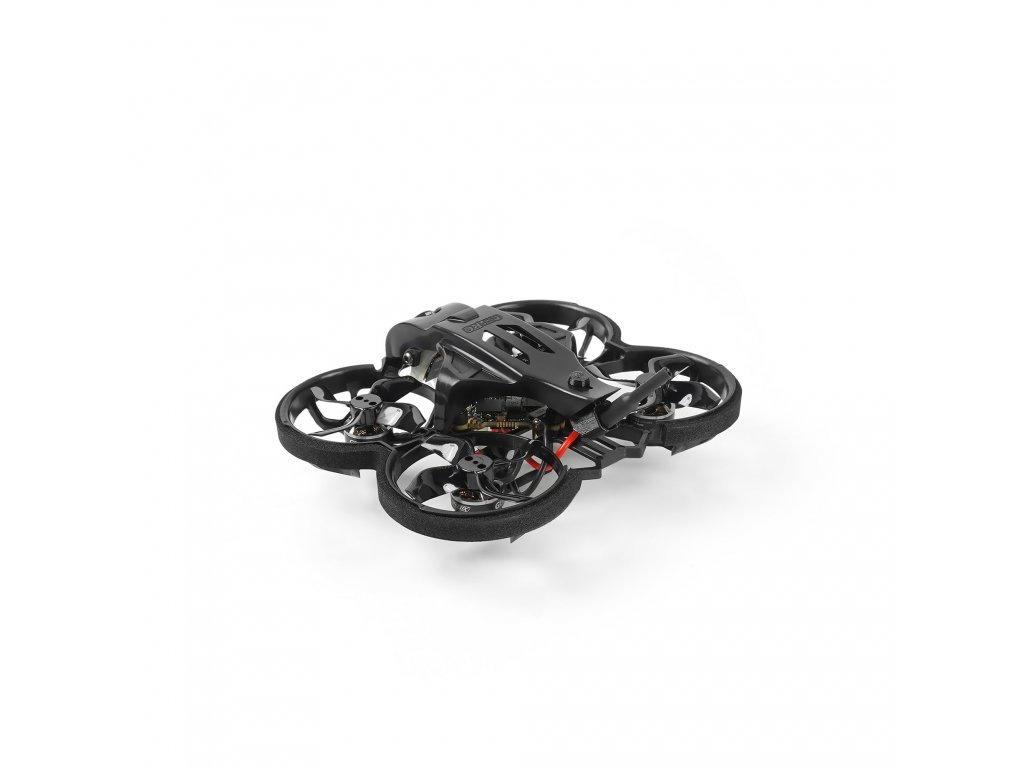

TinyGO Racing FPV whoop RTF

specifikace

• Name: TinyGO
• Brand: GEPRC
• Frame: GEP-TG16
• Motor to Motor: 79mm
• FC: TAKER F411 8Bit 12A
• MCU: STM32F411
• IMU: 42688-P
• Blackbox: 16Mb
• OSD: BetaFlight OSD w/ AT7456E chip
• ESC: 8Bit 12A
• VTX: RAD Whoop 5.8G 25~400mw VTX
• Camera: Runcam Nano2
• Propeller: GEMFAN 1636*4 (4 pairs)
• Motors: GR1102 10000Kv
• Receiver: Integrated ELRS SPI receiver
• TinyGO Racing Weight: 48 Grams

Rádio

• TinyRadio ELRS 2.4G Remote Controller
• Radio Frequency: 2.4GHz
• Radio Frequency: 2.4GHz
• Range: 1000+ meter
• Channel: 8
• Transmit Power:<500mW
• Antenna interface : SMA
• Low Voltage alarm: <6.6v
• Batteries: 2 x 18650 Batteries (not included)

• TinyRadio ELRS Remote Controller
• Radio Frequency: 2.4GHz
• Radio Protocol: FHSS
• Channel: 8
• Transmit Power: < 20 dBm
• Antenna interface: SMA
• Low Voltage alarm: <6.6v
• Batteries: two 18650 batteries or a 2S battery.(not included)

FPV brýle：

• Resolution: 800*480px
• Size of Screen: 4.3 inch
• Whole Size: 155mmx144mmx113mm
• In-built batteries: 3.7v/2000mAh
• Working Hours: 2.5 Hours
• Weight: 314.6 Grams

FPV Baterie：

• Batteries Capacity: 530mAh
• Voltage: 4.35v 1S1P
• Discharge rate: 90C
• Size:（61mmx16.7mmx7mm）
• Weight: 12.7 Grams
• Interface: PH2.0

nabíječ：

• Input power:5v（USB & Type C）
• Full charged Voltage:4.35v
• Output current : 500mAh
• Charging:It can charge 2 PCS 1s HV lipo 4.35v HP2.0/GNB27 plug batteries at the same time

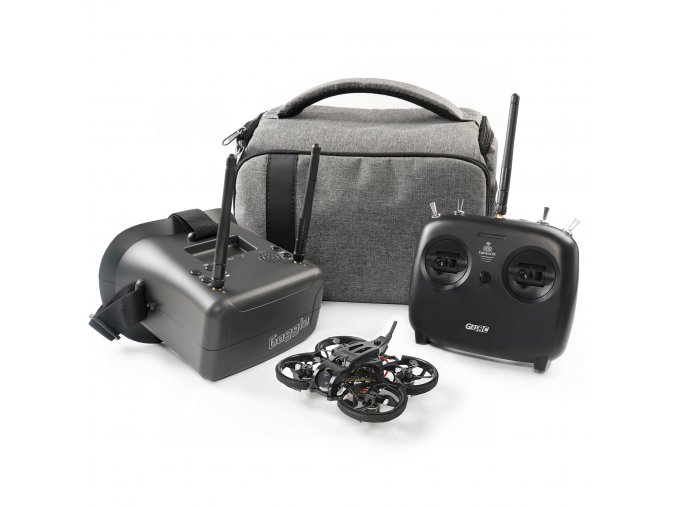

obsah balení:

• 1x TinyGO TinyWhoop
• 1x TinyRadio ELRS 2.4G Transmitter
• 1x GEPRC FPV RG1 Goggle
• 4x GEPRC LiHV 4.35v 90C Battery
• 1x Battery strap
• 4x Gemfan 1636*4 Props(pairs)
• 1x GEPRC Fly bag
• 1x Screwdriver
