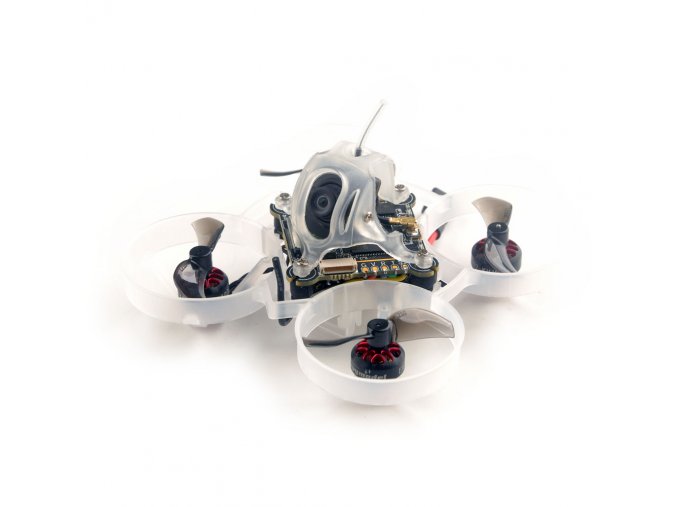

Mobula6 HDZero


Novinka Efekt lupa
  • 1 z 3

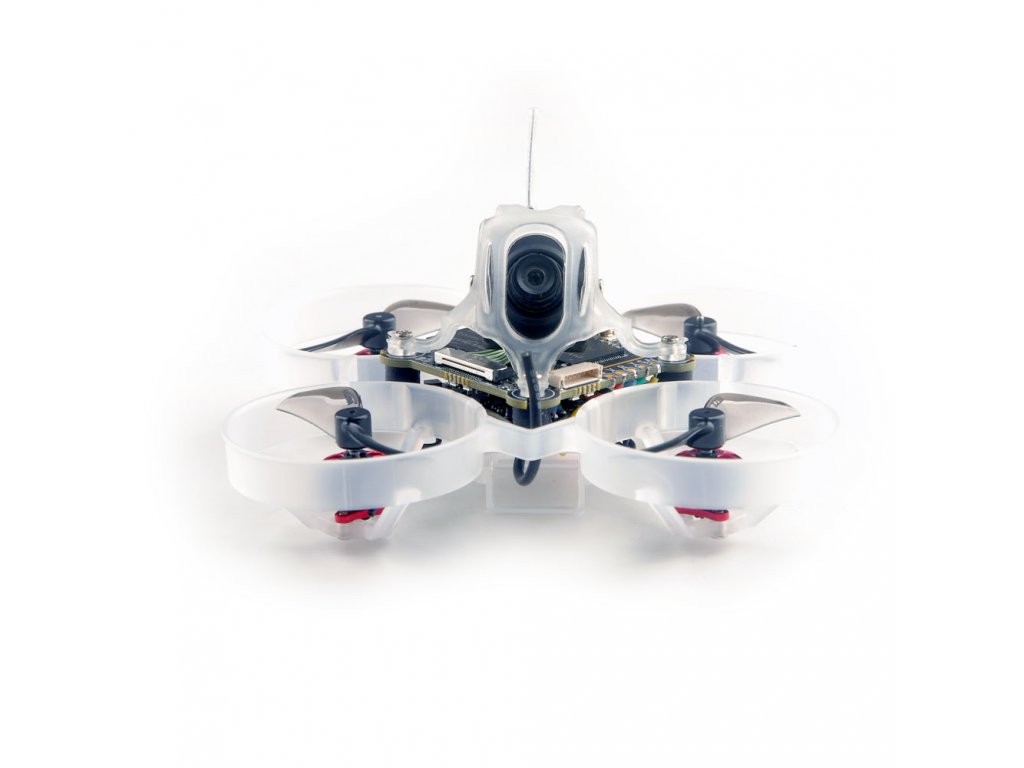

Happymodel Mobula 6 ve verzi s HDZero s ELRS přijímačem

Dostupnost Vyprodáno
5 849 Kč
Kategorie Koptéry
Položka byla vyprodána...


Specifikace:
Brand Name: Happymodel
Model: Mobula6 HDZERO V3
Frame wheelbase: 65mm
Weight: 25.7 gram without battery
Size: 80mm*80mm*50mm
UART ELRS v3.0 ready
Compatible with 1S Lipo battery or Lihv battery
Battery Plug: GNB A30
Onboard blackbox ready

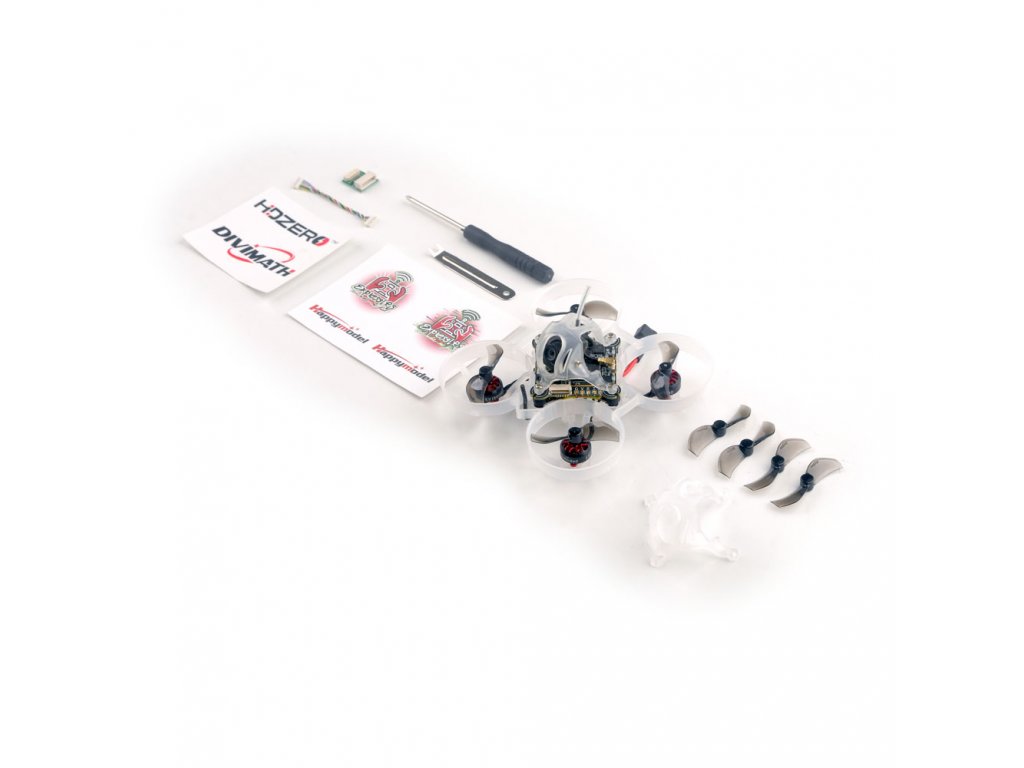

Obsah balení:

Item Name Qty
Mobula6 65mm frame+Canopy 1
SuperX HD ELRS AIO flight controller 1
EX0802 KV19000 Unibell brushless motor 4
Gemfan 1210 31mm propeller(4cw+4ccw) 1
HDZero Nano Lite Camera 1
HDZero Whoop Lite VTX 1
Spare Canopy 1
Propeller disassemble tool 1
Screw driver 1





Flight controller



SuperX HD ELRS

Betaflight 4.4.2 firmware ready
Firmware target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: BMI270 or ICM42688P (SPI connection)
Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone
Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read
Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update
Bluejay ESC Firmware ready
Built-in 5V 1A BEC
Built-in voltage detection
No betaflight analog osd chip
Onboard 4in1 ESC Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support ESC-Configurator and BLHELI_S Suite configurator
Factory firmware: Z-H-30 – Bluejay, 0.19, 48kHz
Default protocol: DSHOT300
Onboard UART ExpressLRS 2.4GHz Receiver RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Receiver protocol: CRSF
Default firmware version: ExpressLRS V3.0.1
The same hardware with Happymodel EP1 receiver
Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through
Motor Mode: EX0802 19000KV
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g):1.7g
No.of Cells(Lipo):1S only
Propeller Gemfan 1219 Bi-blades Weight:0.19g
Material: PC
Pitch:1 inchProps Dia:30mm
Center Hole Dia:1mm
HDZero Nano Lite Camera 14x16x11 mm
1.5gram
0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor
Excellent low light performance
Fov:
4:3: D:130° H:108° v:84°
16:9:D:122° H:108° V:65°
HDZero Whoop Lite VTX 1S Input
25mW/200mW RF Output-SmartAudio Support
25.5×25.5 M2 Soft Mounting- Antenna Retention
Removable Shielding Box- 32.5×32.5mm(29x29mm inner)
4.5grams/4mm Thickness (without shielding)



Default factory dump file:

dump file for Mobula6 HDZERO 1S 65mm digital HD brushless whoop V3

Port setting:
