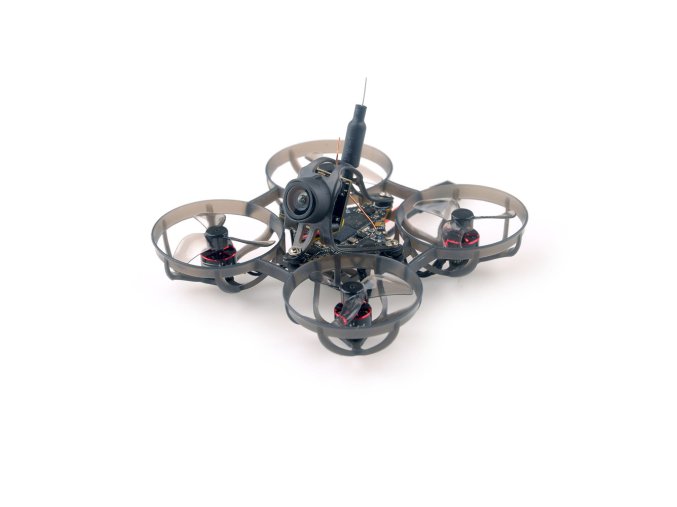

Mobula6 2024
Popis
Specifikace:
Brand Name: Happymodel
Item Name: Mobula6 2024 1S 65mm ultra light micro FPV Whoop
Wheelbase: 65mm
Velikost: 81mm*81mm*37mm
Hmotnost: 17.7g
version with SuperX ELRS V1.0 AIO
Obsah balení:
Item Name | Qty |
Mobula6 2024 1S 65mm whoop Drone Frame +Canopy | 1 |
Option1: SuperX ELRS AIO 5-IN-1 Flight controller V1.0 Option2: SuperX ELRS AIO 5-IN-1 Flight controller V2.0 |
1 |
SE0702 KV28000 brushless motor | 4 |
Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw) | 1 |
FX17-B 1/3 CMOS 800TVL camera NTSC 4:3 | 1 |
Onboard 5.8G 25mw~400mw VTX | 1 |
Spare canopy | 1 |
Propeller disassemble tool | 1 |
Screw driver | 1 |
Specifikace dílů:
Motor | Mode: SE0702 KV28000 Configu-ration:9N12P Stator Diamter:7mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.*Len):Φ9.5mm*14mm Weight(g):1.46g No.of Cells(Lipo):1S only |
Propellers | Materials: PC Inch: 31mm Pitch: 0.8 in Weight: 0.21g Mount hole diameter: 1mm |
Flight controller | SuperX ELRS AIO 5-IN-1 Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4 Sensor:BMI270(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8G OpenVTX 0mw~400mw (MSP control) Built-in UART ExpressLRS v3.0.0 Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 1175 |
Onboard 4in1 ESC | Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: Bluejay v0.19.2 Default protocol: DSHOT300 Recommend ESC Startup power value to min1100/max1200 |
Onboard Serial ExpressLRS receiver | Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V3.0 RF Frequency: 2.4GHz Antenna : Enameled copper wire antenna Telemetry output Power: <12dBm Receiver protocol: Serial_based CRSF Compatible with ExpressLRS V3.x.x TX Module Could flash single ELRS receiver firmware by Wifi ExpressLRS firmware target: ExpressLRS firmware target: HappyModel AIO 2.4GHz RX+VTX (ExpressLRS web flasher) Available from Expresslrs version 3.4.0 RC2 |
Onboard 5.8g VTX | Firmware version: OPENVTX MSP VTX PIT Mode support Channels:40ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw) Antenna connector: U.FL |
FX17-B Camera | Model:FX17-B Image Sensor: 1/3″ CMOS Horizontal Resolution: 800TVL FOV 150° Signal System: NTSC Net Weight: 1.5g Dimensions: L14mm*W14mm*H13mm |
