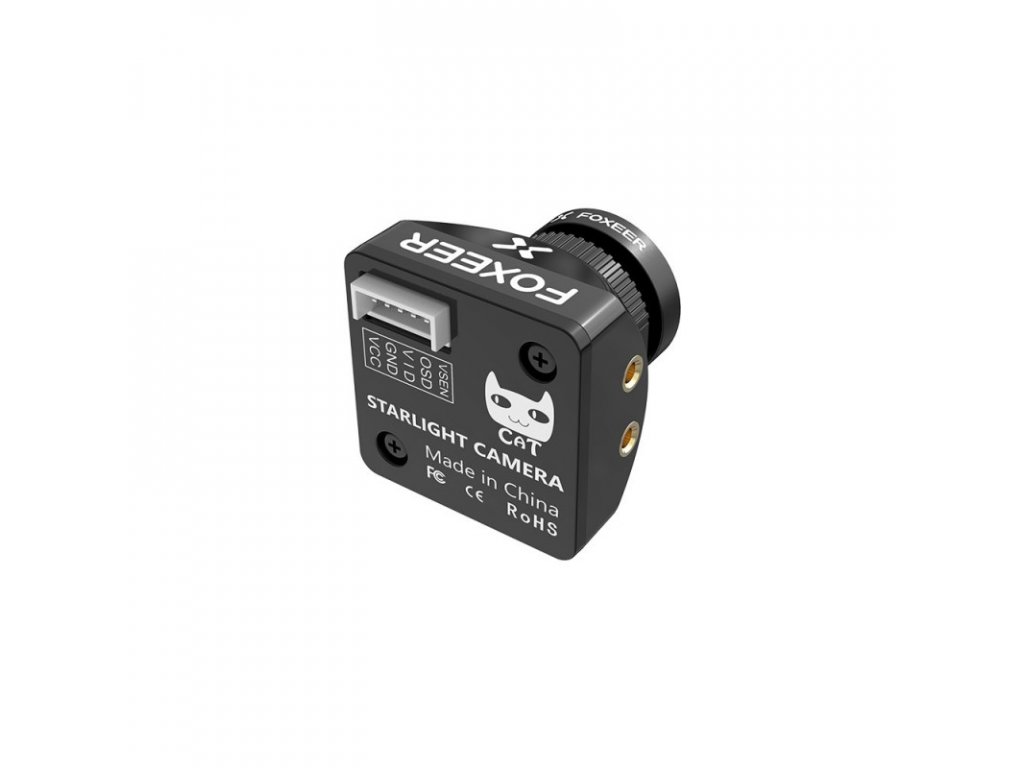

Foxeer Cat 3 mini
Foxeer Cat 3 mini
Popis
| Sensor Type |
Sony 1/3" CMOS Sensor |
| IR Light |
Works with 850nm IR Light |
| Scale |
4:3(Default)/16:9 Switchable |
| Tv System |
PAL(Default)/NTSC Switchable |
| Resolution |
1200TVL |
| Lens |
M12 2.1mm F1.4 Low Light Lens |
| Filter |
Without filter |
| FOV |
4:3 FOV-H: 100° FOV-D:125° |
| 16:9 FOV-H: 100° FOV-D:115° |
| Shutter Speed |
PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec |
| Video Output |
CVBS Analog Signal |
| Minimum Illumination |
0.00001Lux |
| White Balance |
Auto |
| DNR |
3DNR |
| WDR |
100dB |
| DAY/NIGHT |
EXT/Auto/Color/B&W |
| Flight OSD |
Voltage/Cam Title/Time |
| Input Voltage |
4.6V~20V |
| Language |
ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA |
| Working Temperature |
-10°~50°C RH90% MAX |
| Working Humidity |
20~80% |
| Storage Temperature |
-20°~70°C |
| Consumption |
95mA±15% @ DC12V |
| Dimension |
22*22mm |
| Weight |
12.2g(Exclude cable) |
| ODM/OEM |
Support |
