FC+ESC
›
30x30
›
GEPRC GEP-F722 45A AIO
GEPRC GEP-F722 45A AIO
Popis
Specifikace:
- Model Name: GEP-F722-45A AIO V2
- MCU: STM32F722
- IMU: 42688 gyro/accelerometer(SPI)
- Firmware target: GEPRC_F722_AIO
- OSD: Betaflight OSD w/ AT7456Ev
- UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
- Beeper: YES
- LED: YES
- USB: Micro USB
- BEC output: 5V@1A
- Intergrated LC Filter
- ESC MCU: 8BB21F16G
- Continuous current: 45A
- MAX current: 55A (10s)
- Input: 2~6S
- Supports: Dshot600,Oneshot,Multishot
- BlackBox: 16Mb
- Traget: G_H_30
- Size: 32x32mm Board
- Mounting Hole: 25.5×25.5mm
- Weight: 8.8g

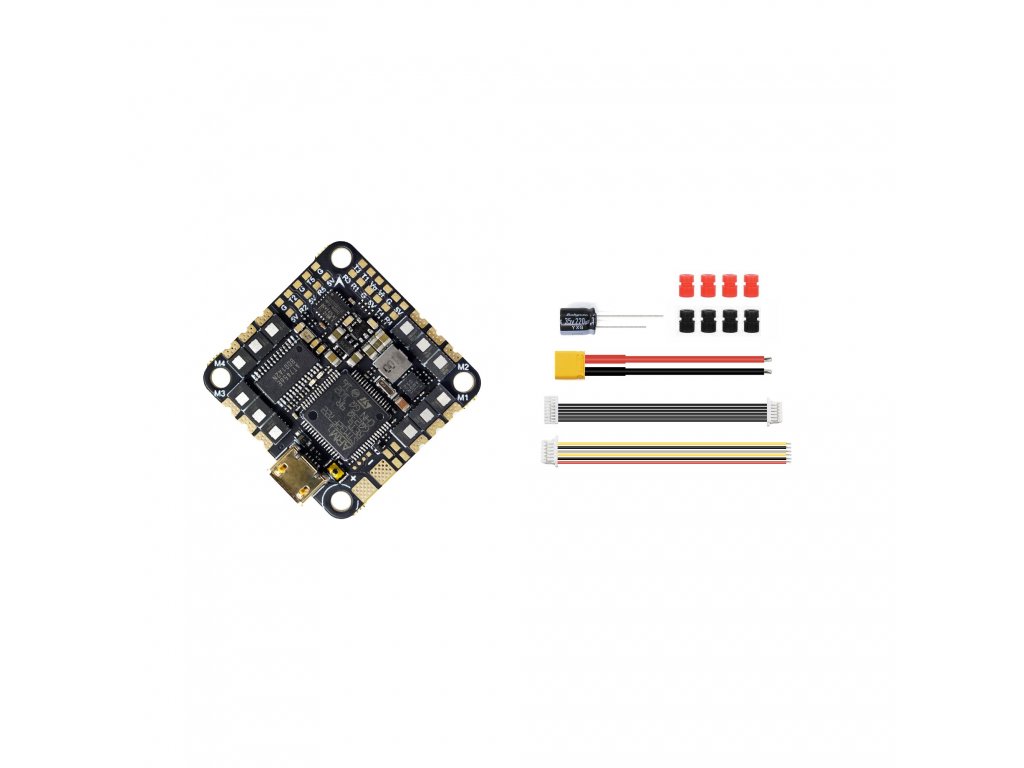

obsah balení:
- 1 x GEP-F722-45A AIO V2
- 1 x XT30-7CM-18AWG Power cables
- 1 x 35V220UF capacitor
- 1 x SH1.0-6Pin to GH1.25-8Pin cables
- 8 x M2*6.5mm Damping rings
