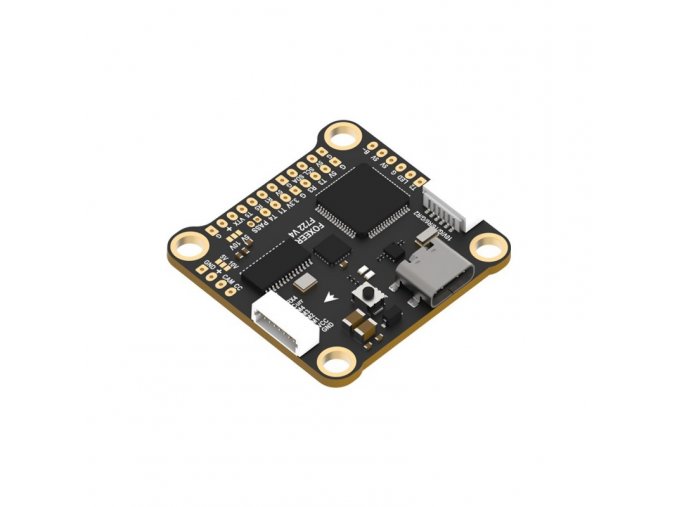

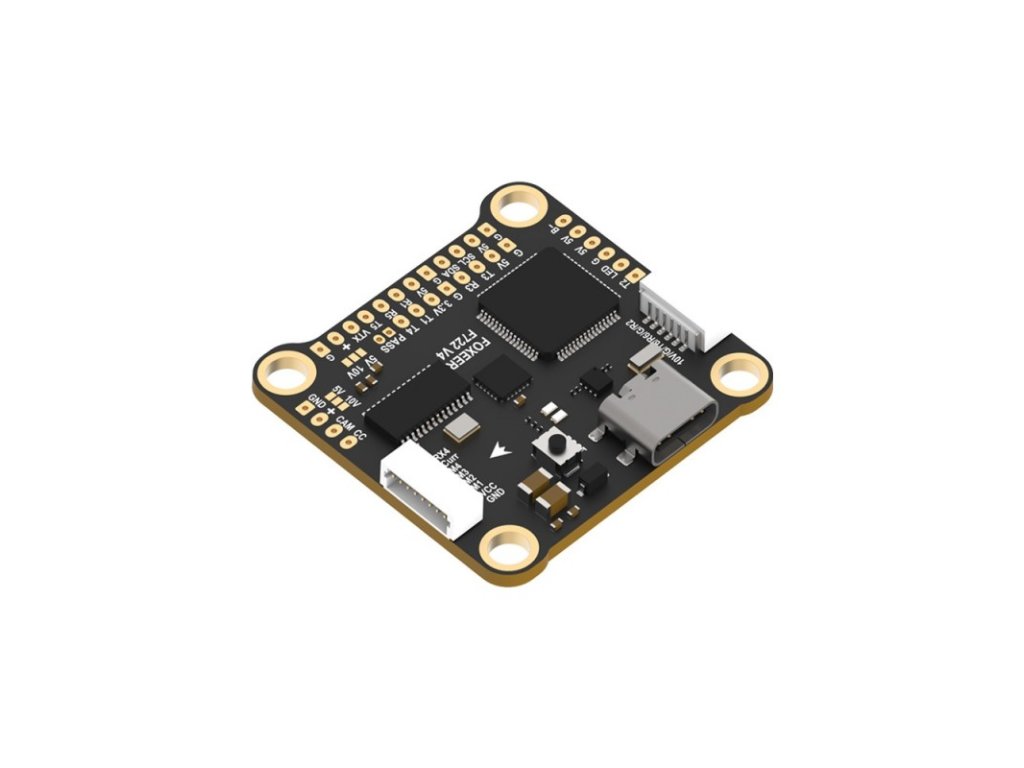

Foxeer F722 V4 MPU
Foxeer F722 V4 MPU
Popis
| Model |
F722 V4 MPU6000 |
| CPU |
STM32F722RET6 |
| Gyro |
MPU6000 |
| Barometer |
DPS310 |
| Power Supply |
4~8S Lipo |
| BEC Output |
DC5V/2A; DC10V/2A |
| OSD |
BF OSD |
| Black Box |
16M Flash Memory |
| UART |
5 Sets+Rx4 |
| ESC Telemetry |
RX4 |
| Buzzer |
YES |
| Connector |
DJI/HDzero |
| Smart Audio |
YES |
| LED |
1 Set 2812 LED |
| USB |
Type-C |
| X8 Supported |
Need CLI |
| Firmware |
BetaFlight:FOXEERF722V4; |
| Size |
37X37mm |
| Mounting Hole |
30.5X30.5mm,Φ4mm |
| Weight(g) |
7.7g |
| Working Temperature |
-20℃ ~ +55℃ |
| Working Humidity |
20～95% |
| Storage Temperature |
-20℃ ~ +70℃ |
| Package Includes |
1*FC, 4*Rubbers Columns, 1*Cable |
