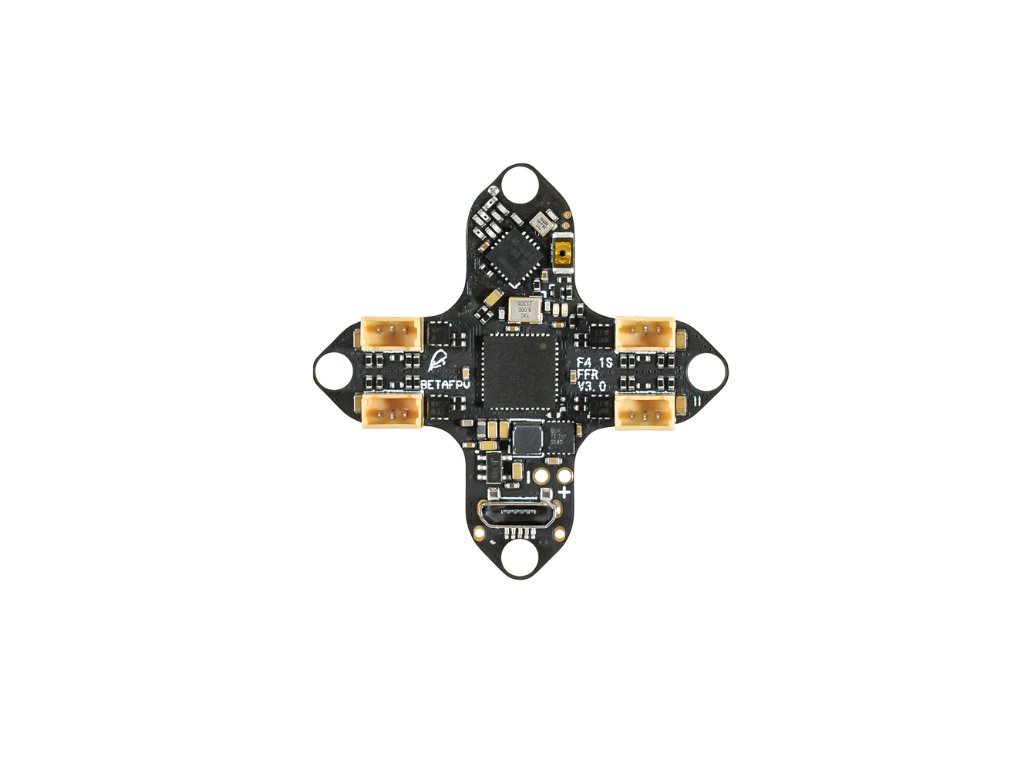

F4 AIO 1s pro Meteor65 (Frsky)

SPECIFIKACE

• F4 1S AIO FC(Frsky/Futaba Rx)
• Váha: 3.92g(without antenna and BT2.0 connector)
• VTX Power: 25mW
• CPU: STM32F411CEU6 (100MHZ )
• Six-Axis: MPU6000 (SPI connection)
• Firmware version: betaflight_4.2.0_STM32F411
• Receiver: Support Frsky LBT Receiver/ Futaba Receiver
• Motor Pin Connecter: 1.25mm Header Pins
• Mounting hole size: 29mm x 29mm / suitable for almost all kind of whoop frame

• Built-in ESC with 5A continuous and peak 6A current
• Input voltage: 1S Lipo
• ESC firmware: O_H_5_REV16_8.HEX
• OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
• Signal support: D-shot150, D- shot300, D-shot600, Oneshot125, Multishot, PWM
• 4 Indicators: Receiver indicator (Blue)/Flight control status indicator (Green)/Flight control power indicator (Red)/VTX indicator (Pink)

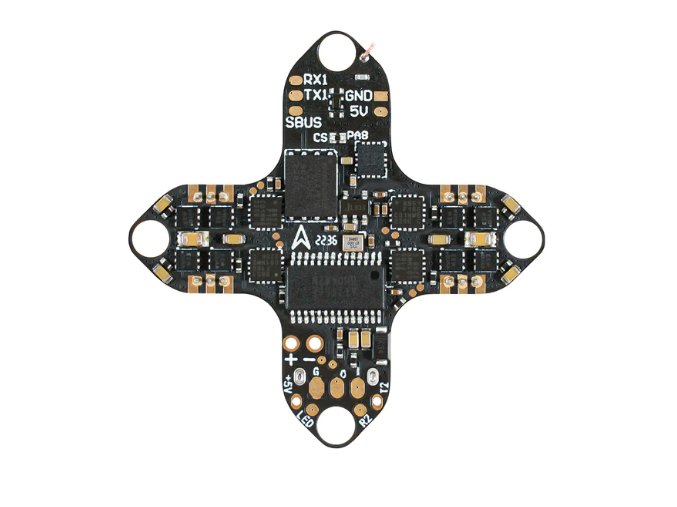

Diagram for F4 1S AIO FC(SPI Rx)

SPI Receiver CC2500

Come with the build-in SPI Receiver CC2500, F4 1S AIO FC(SPI Rx) can compatible with Futaba S-FHSS, Frsky D8 and D16 protocol. The default Frksy protocol is Frsky D16, if pilots buy the wrong receiver of the SPI Frsky version or upgrade the wrong firmware accidentally, which needs to switch the protocol to Futaba or FrskyD8, please upgrade the Betaflight Firmware according to this tutorial.

Status LED for F4 1S AIO FC(SPI Rx)

There are 4 LEDs on the bottom of the board to indicate the status, including the Receiver LED ( Blue), FC Status LED(Green), FC Power LED ( Red ) and VTX LED(Pink).
