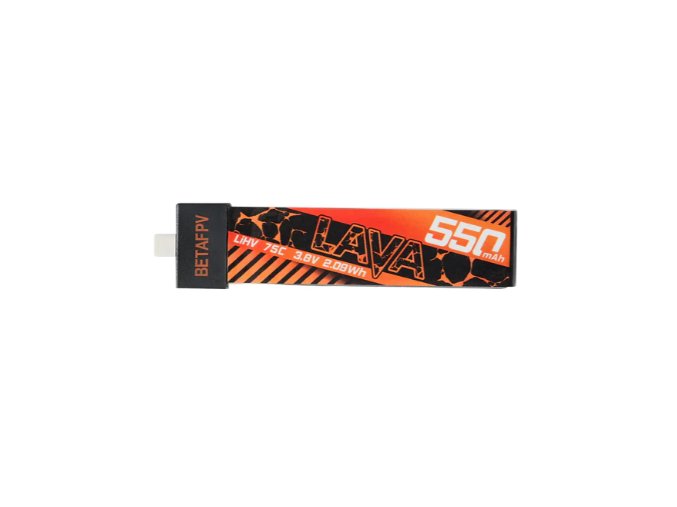

BetaFPV Lava 1s 550mAh

Specifikace

• LAVA 1S 550mAh 75C Battery
• Kapacita: 550mAh
• Rozměry: 68*15.5*6.7mm

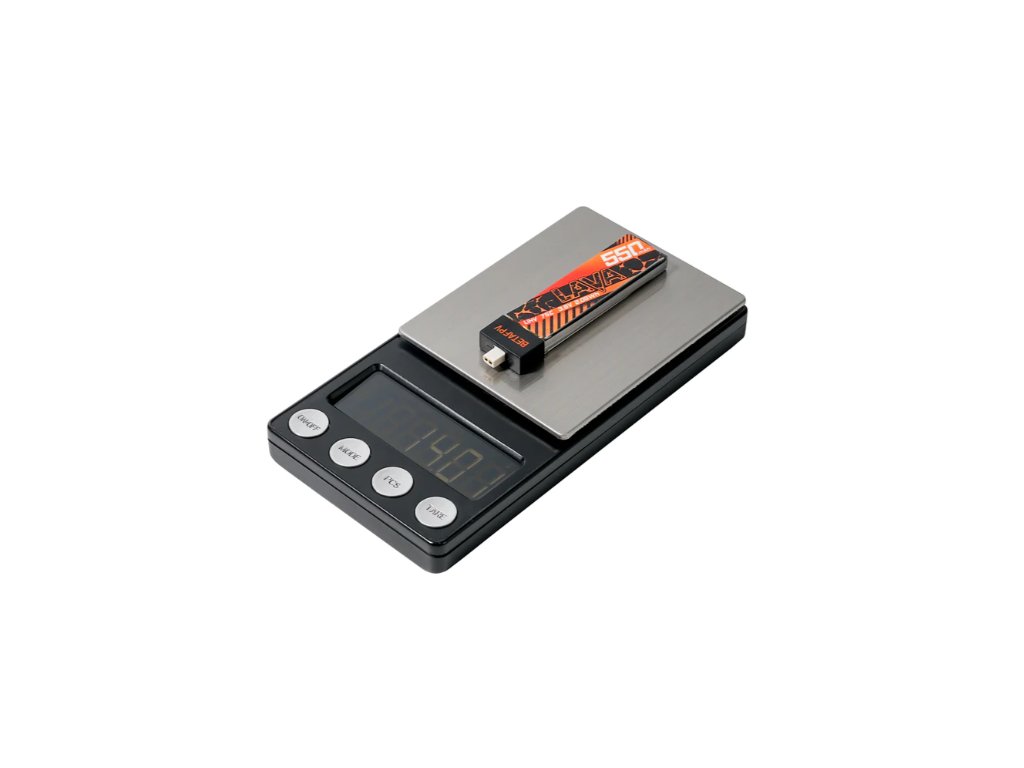

• Hmotnost: 14g
• Power: 2.09Wh
• C-Rate: 75C
• Typ baterie: LiHV
• Napětí: 3.8V
• Konektor: BT2.0 Connector



The below picture shows the discharge report of the battery.

Z-Folding Process

The Z-Folding Process Battery demonstrates remarkable performance and versatile capabilities. Leveraging its low internal resistance, it enables efficient high-current discharge within shorter time frames, resulting in elevated discharge platforms. Compared to the Winding Process Battery, it achieves a 0.2V higher discharge platform under equivalent loads, ensuring consistent and robust power output, additionally, it boasts a 5% higher energy density within the same volume, accompanied by an extended cycle life. The Z-Folding Process allows precise customization of electrode sizes based on lithium battery dimensions, optimizing control over battery size and shape. Its battery performance is superior, with a wider range of options for appearance and shape, and its applicability is also broader compared to the Winding Process Battery.
