Foxeer Reaper AIO V3



1 z 4   Tweet

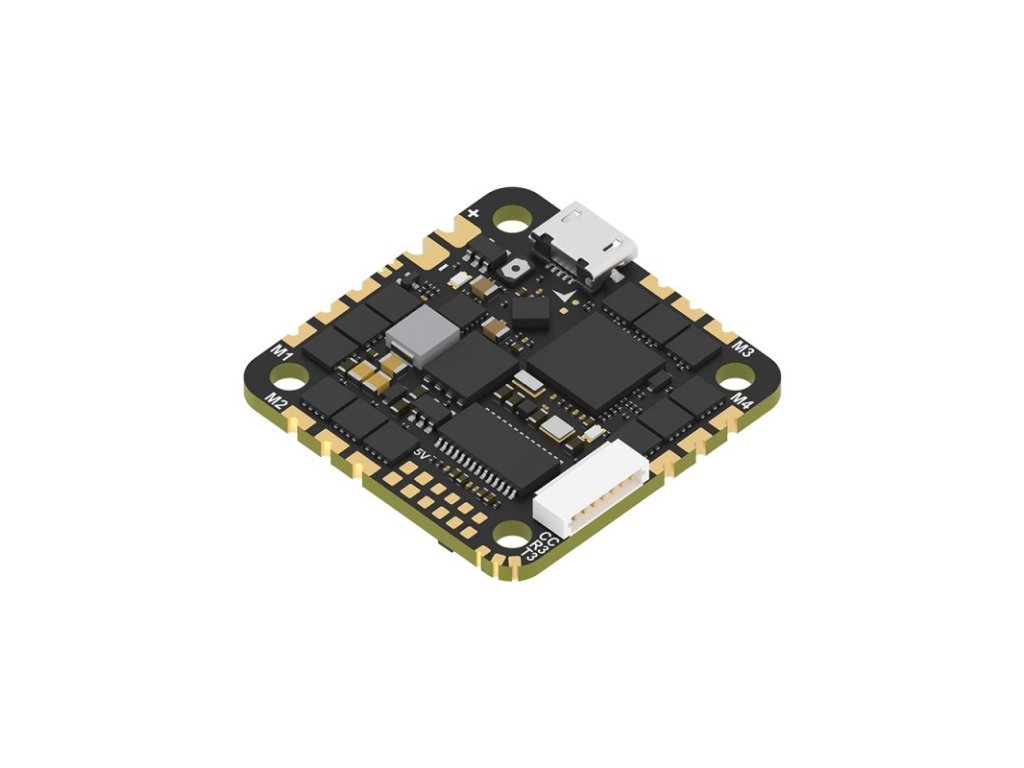

All in One (AIO) board Reaper V3 F745 od značky Foxeer je velmi kvalitní deska obsahující řídící desku s F7 procesorem a 45A regulátory pro stavbu koptér s mountem 25x25. Dostupnost Skladem 3 229 Kč     Parametry Kategorie 25x25 Tisk Dotaz Hlídat cenu

• Popis



Popis

Model	FOXEER Reaper AIO V3
CPU	STM32F745
Power Supply	2~6S Lipo(8.4~25.2V)
BEC Output	DC5V/2.5A
OSD	BF OSD
Black Box	16M Flash Memory
UART	5 Set
USB	Micro USB
Fireware	BF:FOXE-FOXEERF745V3_AIO; Inav: FOXEERF745AIO V3
DJI/Vista Connector	Supported, 7pin
Size	32.5X32.5mm
Mounting Hole	25.5X25.5mm,Φ3mm/M2
Weight(g)	8.9g
Working Temperature	-20℃ ~ +55℃
Working Humidity	20～95%
Storage Temperature	-20℃ ~ +70℃
Package Includes	1*AIO, Rubbers Columns, XT30 Cable, Vista Cable, Capacity



Firmware	Bluejay: G-H-30-96-v0.16/ BLS:G-H-30 16.7
Continuous /Burst Current	45A x 4/ 50A x 4
Input Voltage	2~6S Lipo(8.4~25.2V)
Telemetry	No
ESC Programming	Bluejay(default)/BLHeli-S optional
Stick Programming	Supported
Current sensor:	Supported
Current scale:	100
Input signal:	Dshot300/600
